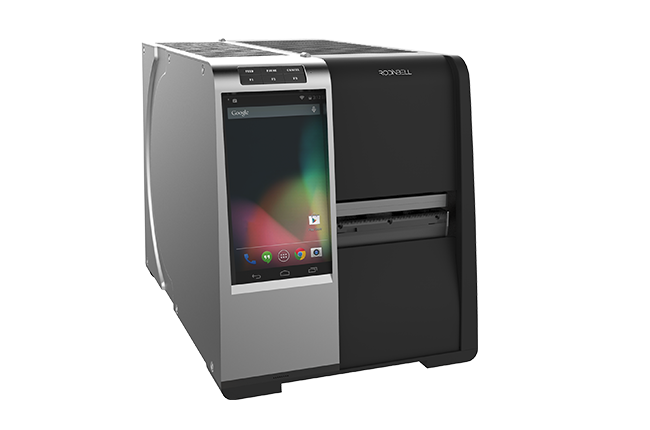

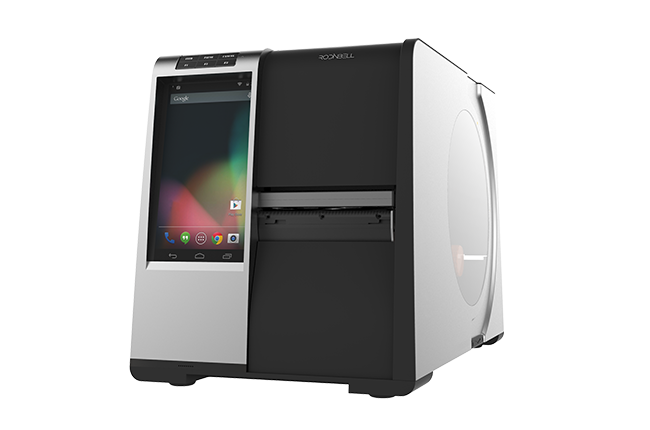

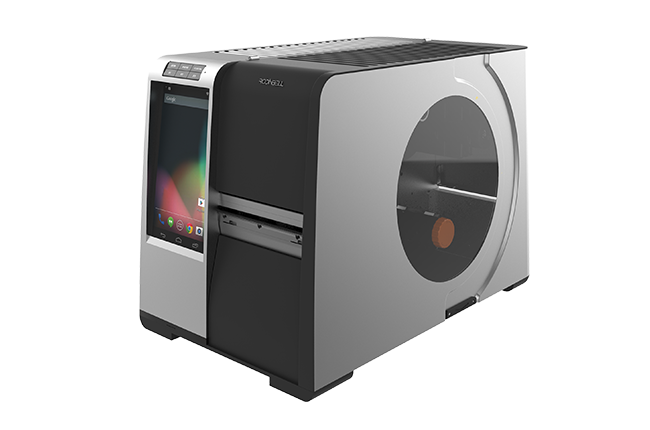

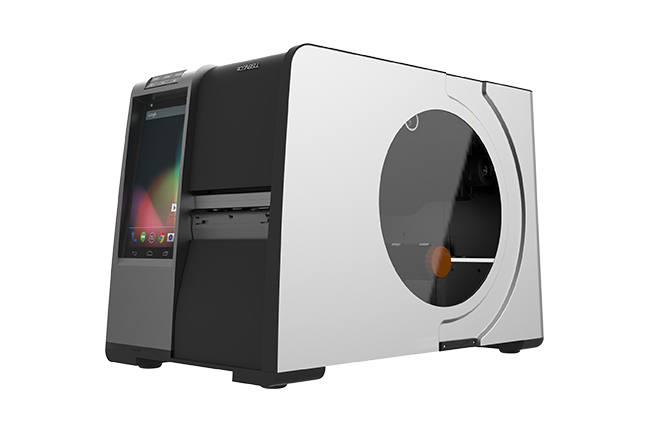

AIP-860 AI Industrial Printer
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter


Physical Parameter

Dimensions

Weight

497*302*354mm

19.5kg

Configuration Parameter

Operation System

CPU



GPU



NPU


RAM

ROM

USB


Serial Interface

Ethernet

Bluetooth

WIFI

PSAM

GPIO

Physical Button

FEED/PAUSE/CANCEL

Function Keys *3

Body Design

LCD

Gyroscope

Android 9.0

Hexa-core 64 bit processor

( Dual-core Cortex-A72+Quad-core Cortex-A53 )

Frequency is up to 1.8GHz

Mali-T860MP4 GPU

Supports OpenGLES1.1/ 2.0/ 3.0/ 3.1,

OpenVG1.1, OpenCL, DX11

Supports multiple AI algorithms

Computing power up to 3.0TOPs

1G+4G

32G

2 USB3.0 Hos(t Type-A)interfaces

1 USB3.0 Device(Type-B)interface

1 RS232 interface

10/100/1000M-bit ethernet

Bluetooth 5.0

Supports 2.4G/ 5G WIFI

Supports

2 Inputs,2 Outputs


3 ALPS buttons/ Operating force 2.5N /Operating life 1,000,000 cycles

3 ALPS buttons/ Operating force 2.5N /Operating life 1,000,000 cycles

Metal frame, stylish appearance

8.0 inches/ 1200*1920 / IPS / 180°view angle

Six axis( Acdeleration+Gyroscope+Magnetometer )

Printer Specifications

Resolution

Maximum Print Width

Maximum Print Speed

Paper Detection Method

Maximum Continuous Print Length

Print Method

Consumables Installation

300 dpi/12 dots per mm

105mm(4.1″)

300 dpi:254mm/s(10ips)

Transmissive and reflective

3000mm(118.1″)

Thermal transfer and thermal printing

Side-mounted consumables

Media Parameters

Label Roll Size



Label Thickness


Ribbon Roll Size



Width: 10-110mm (0.39"-4.33")

Outer diameter: maximum 203mm (8")

Inner diameter: 25.4mm(1″)/40mm(1.5″)/76mm(3″)

0.06mm(0.0023″)to 0.305mm(0.012″)

Anti-metal label version: ≤ 1.2 mm

Outer diameter: up to 84mm (3.3")

Inner diameter: 25.4mm (1″)

Width: Maximum 118mm (4.65")

UHF RFID

RFID Engine

Protocol

RodinBell M-2800/ Based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C

Fonts and Graphics

Fonts



Graphics


Built-in Western dot matrix font library;

Chinese dot matrix font library;

Downloadable vector font library;

Downloadable objects include graphics;

Scalable and bitmap fonts;

Barcode Symbologies

1D Barcode


2D Barcode

Code128, Code39, Code93, UPC-A, UPC-E,

EAN13, EAN8, ITF,CODABAR, GS1 BAR etc

QRCODE, PDF417, DATAMATRIX, Micro PDF417,

Truncated PDF417, MAXICODE etc

Application Environment

Environmental Parameters




Power Supply

Operating Temp:: 0°C to 40°C(32°F to 104°F)

Operating Humidity: 20%RH-85%RH(non-condensing)

Storage Temp: -40°C to 60°C(-40°F to 140°F)

Storage Humidity: 20%RH-85%RH(non-condensing)

100~240V,5.8A,50/60Hz

Accessories

Wifi antenna,Power supply,USB cable
