D-100

UHF RFID Desktop Reader

Low power consumption, small-sized and easy to use.

DownMore Product

Product

Clothing
Retail
Personnel
Library
Livestock
Warehouse

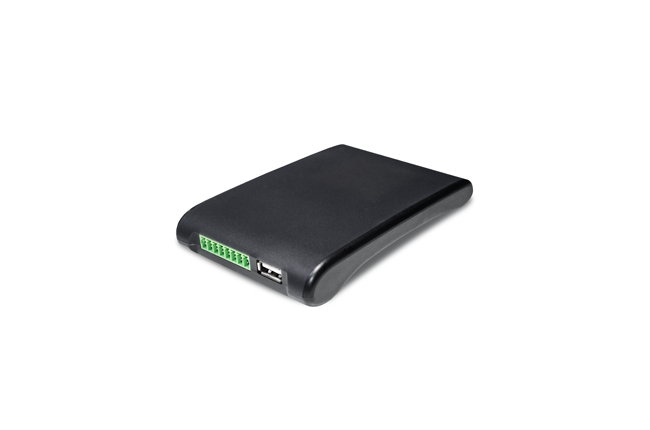

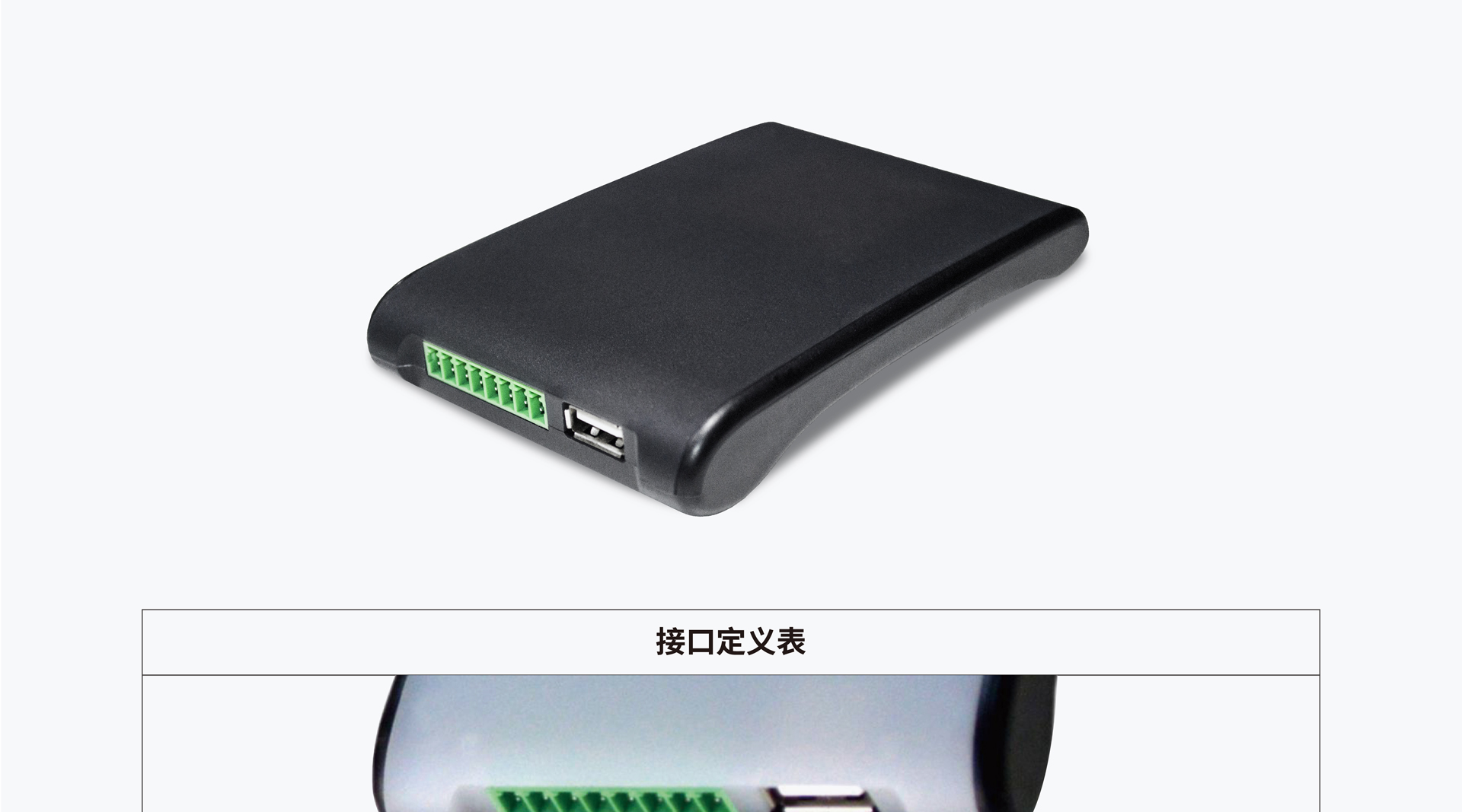

D-100 UHF RFID Desktop Reader

DetailsParameterSelectionConsulting

Tel：0755-28225530
Email：info@rodinbell.com
Fax：+86 755 89373021
Post：518129
Address： 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC

Become a partner or an agent？Enter

Mechanical Parameters

Dimensions

Weight

122*84*20mm

100g

Electrical Parameters

Input Voltage

Operating Current

Standby Mode Current

Baud Rate

Ambient Temp Monitoring

DC 3.5V~5V/9V

150mA @ 5V (26 dBm Output，25°C)

110mA @ 5V (18 dBm Output，25°C)

＜80mA

115200 bps( default and recommended),38400 bps

Supported

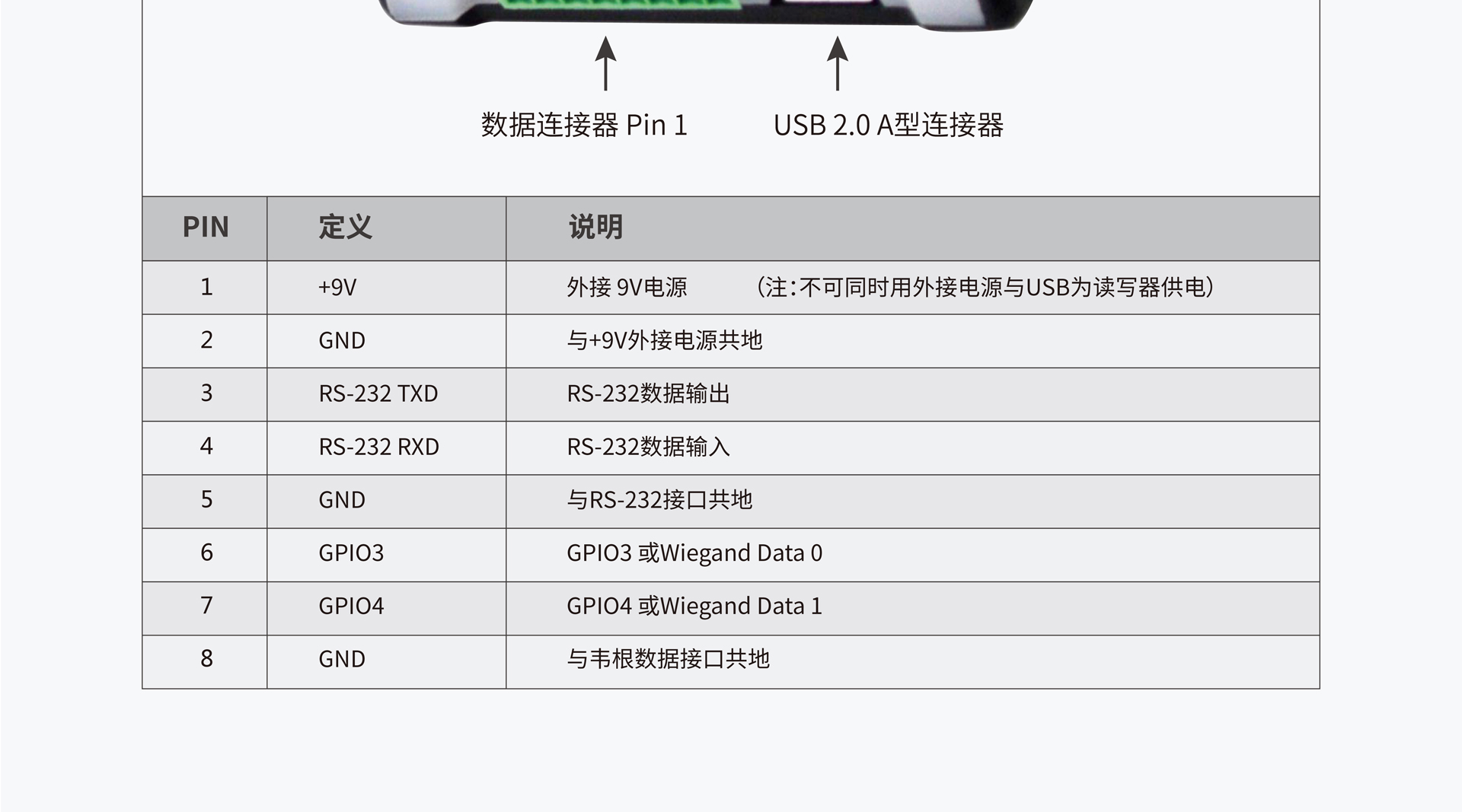

Communication Interface

USB

Serial Port

Wiegand

GPIO

2 USB2.0（Type-A）interfaces

1 RS232 interface

Wiegand 26/34

2Inputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

-20℃~+70℃

-20℃~+85℃

5%RH~95%RH（non-condensing）

IP53

UHF

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

Read Distance

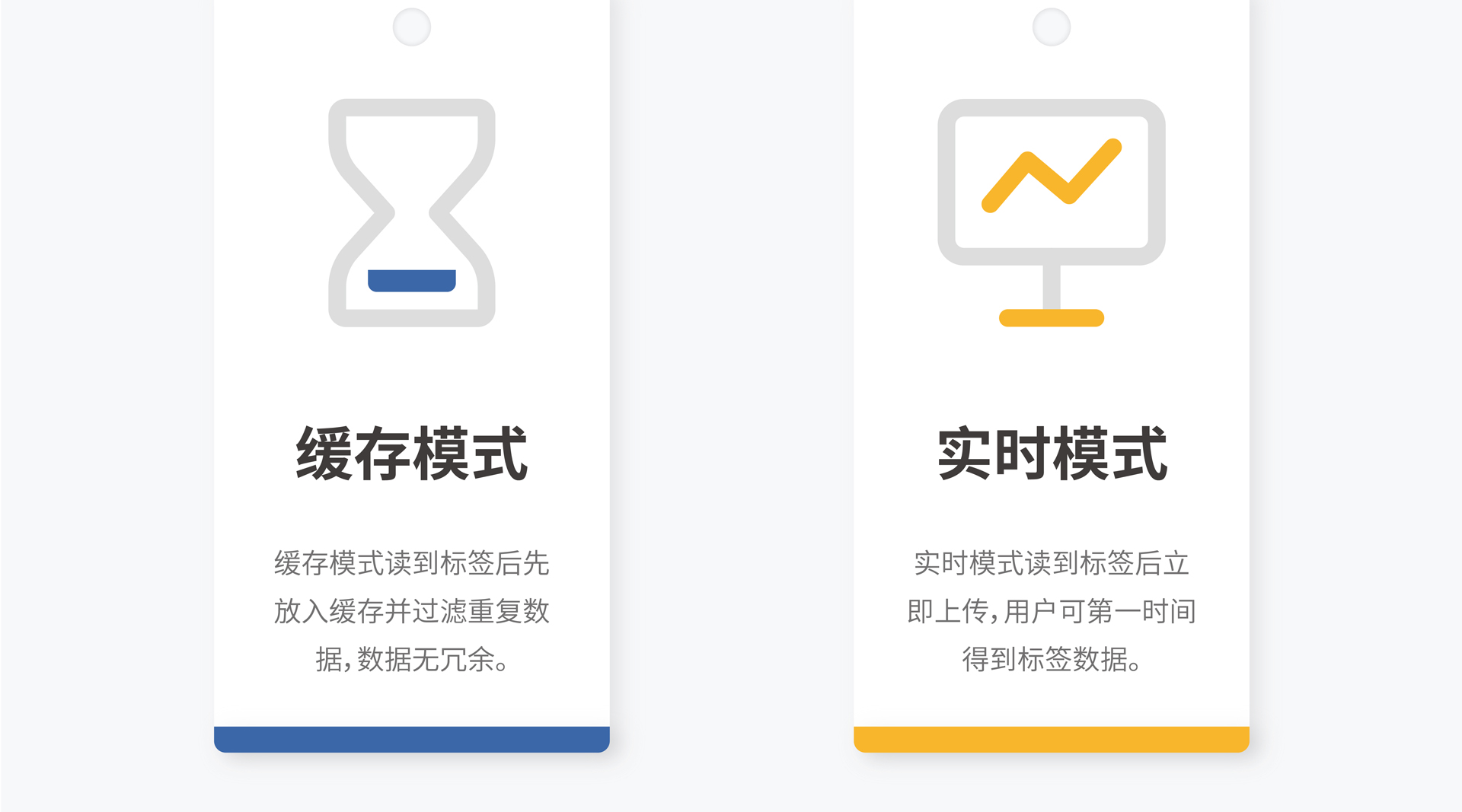

Tag Buffer Mode

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Supported Regions

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C

902~928MHz, 865~868MHzOptional

18~26dbm

＞50pcs/s

D-100 2dbi ceramic antenna

D-101 0dbi ceramic antenna

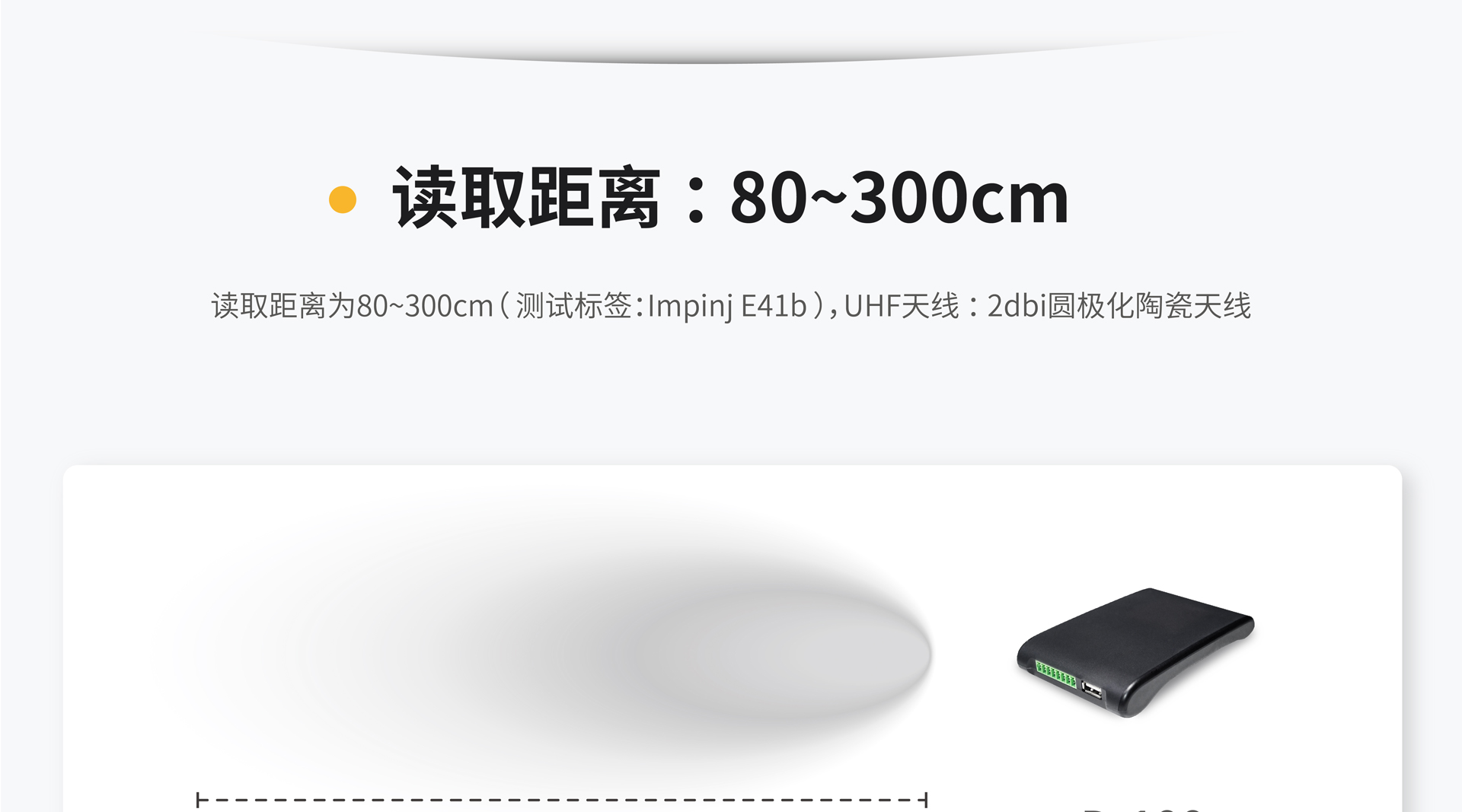

D-100: 80~300cm

D-101: 10~50cm

200 pcs @ 96 bit EPC

+/- 1dB

+/- 0.2dB

＜-70dBm

Support

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
