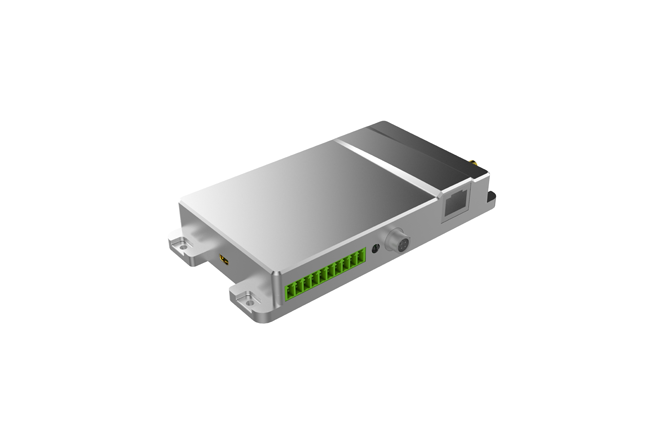

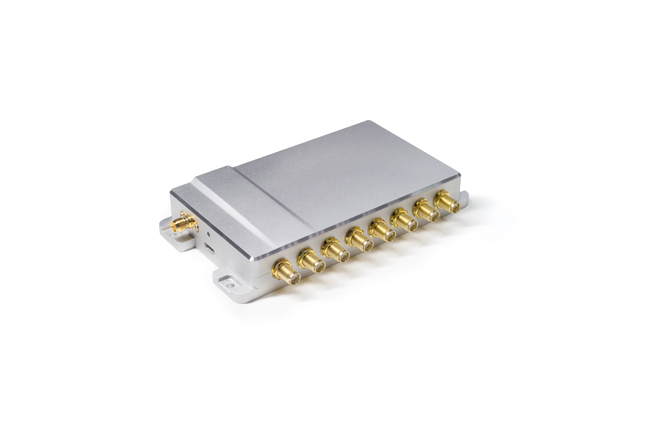

Spider 8000
8-Port UHF RFID Fixed Reader
High integration, makes application easier.
Product
  • Clothing
  • Retail
  • Personnel
  • Library
  • Livestock
  • Warehouse

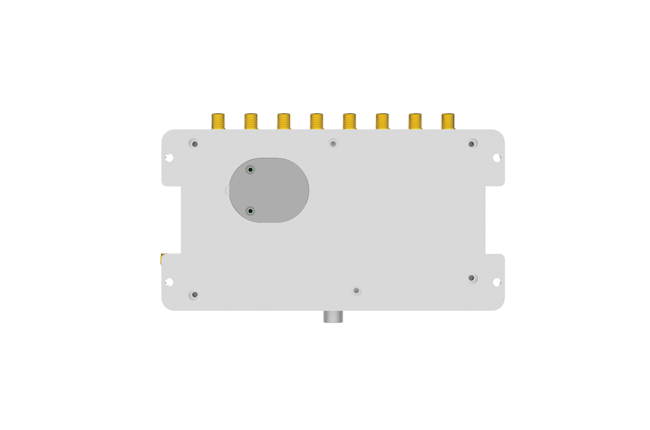

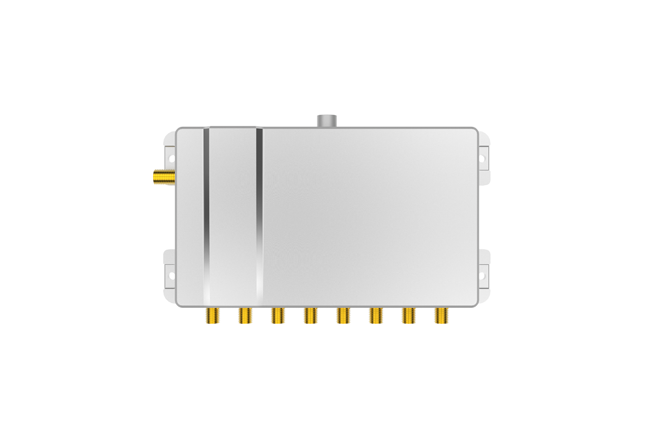

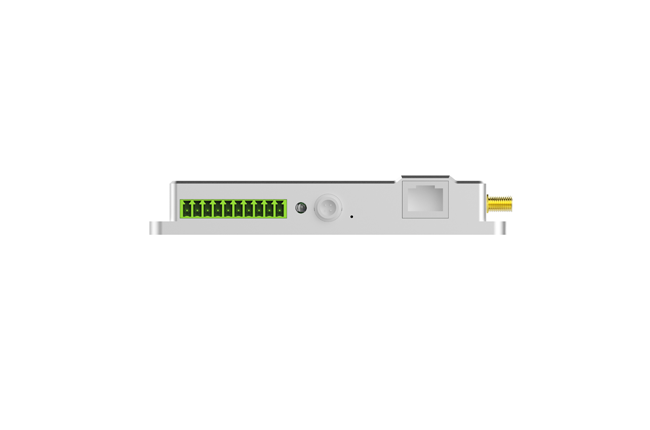

Spider 8000 8-Port UHF RFID Fixed Reader
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter

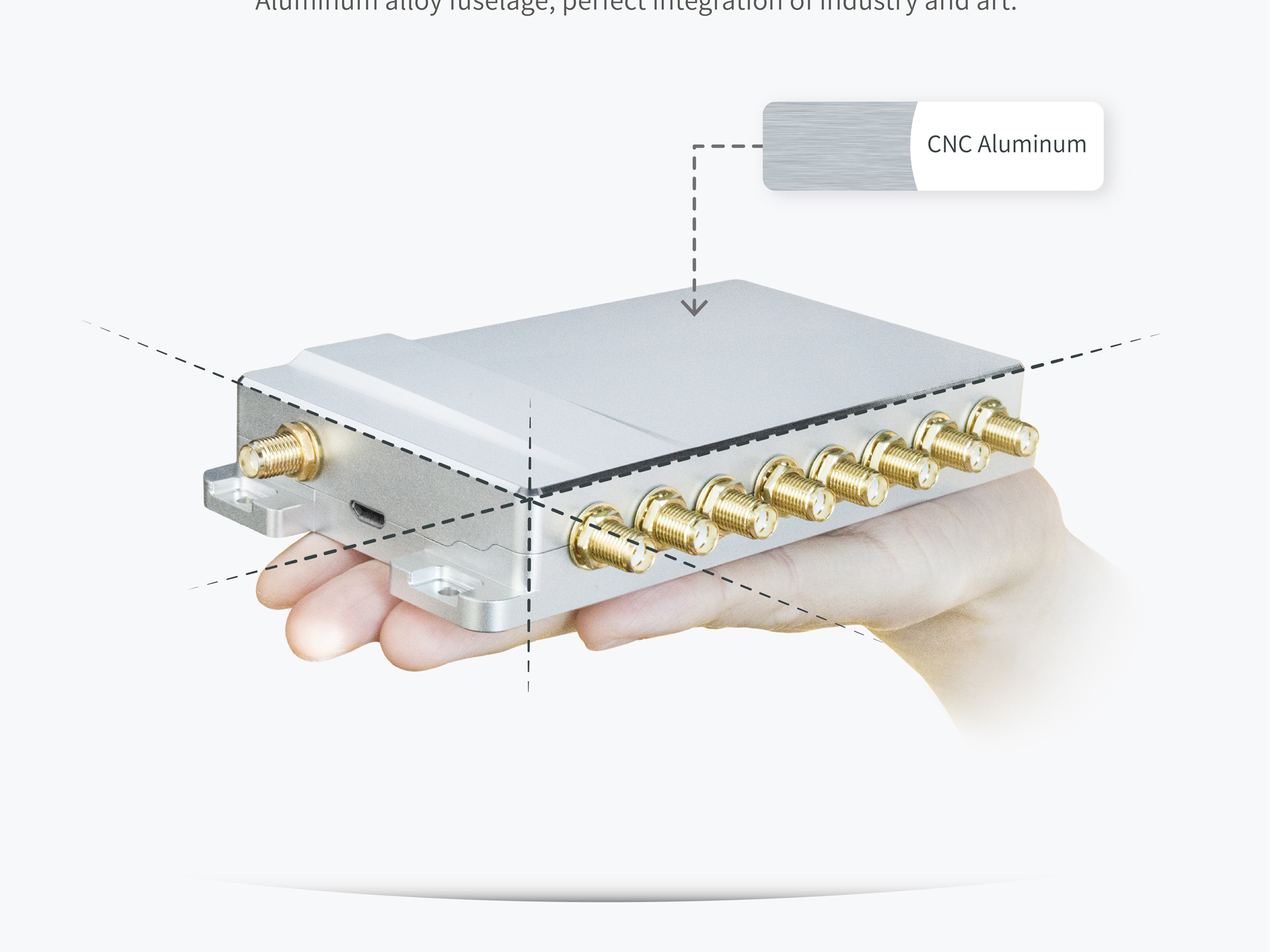

Mechanical parameters

Material

Dimensions

Weight

CNCAluminum

133*86*22mm

320g

System Characteristics

Operating System

CPU

GPU

RAM+ROM

Input Voltage

Operating Current

POEOptional

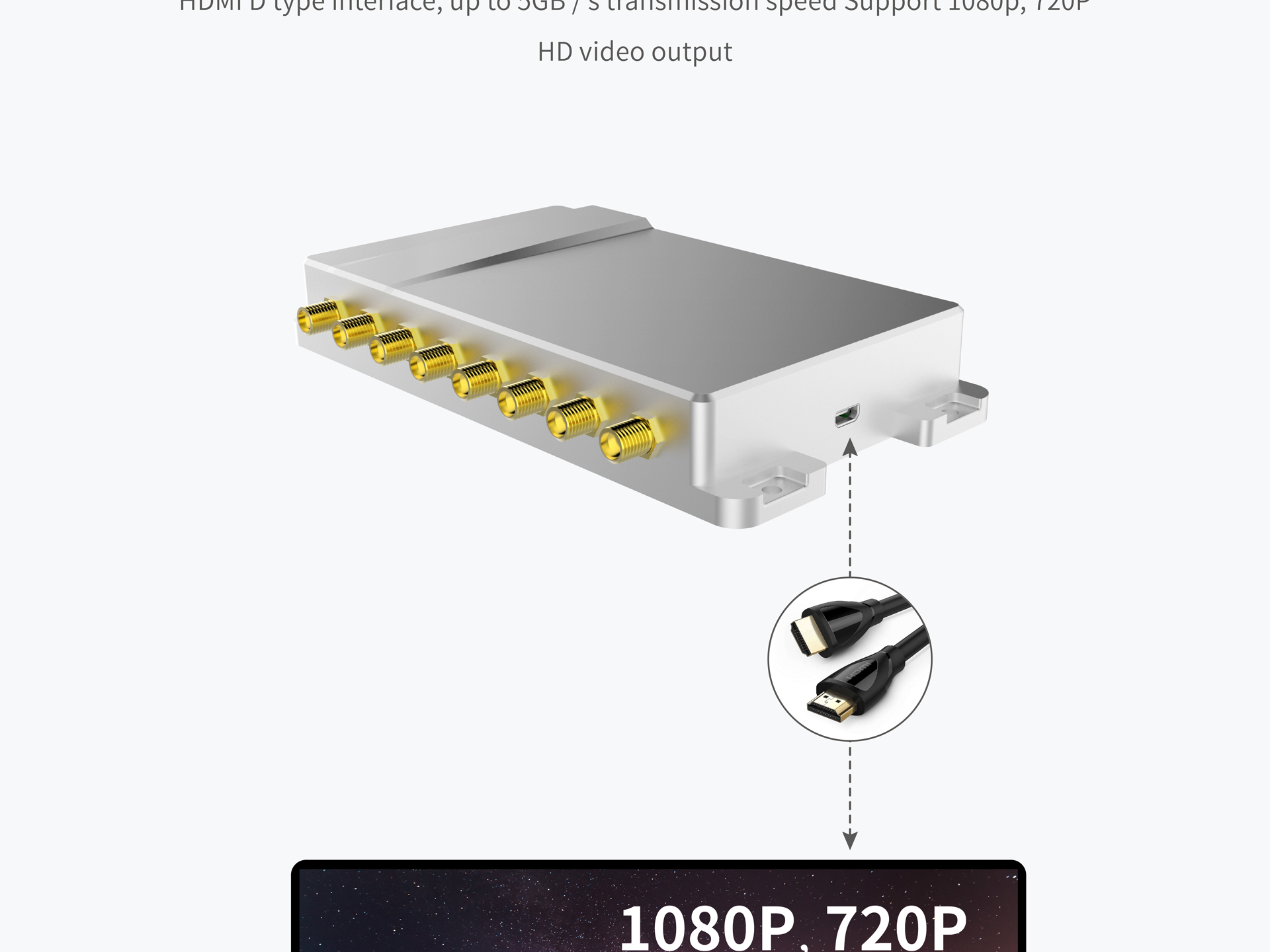

HDMI


Ambient Temp Monitor

Online Upgrade

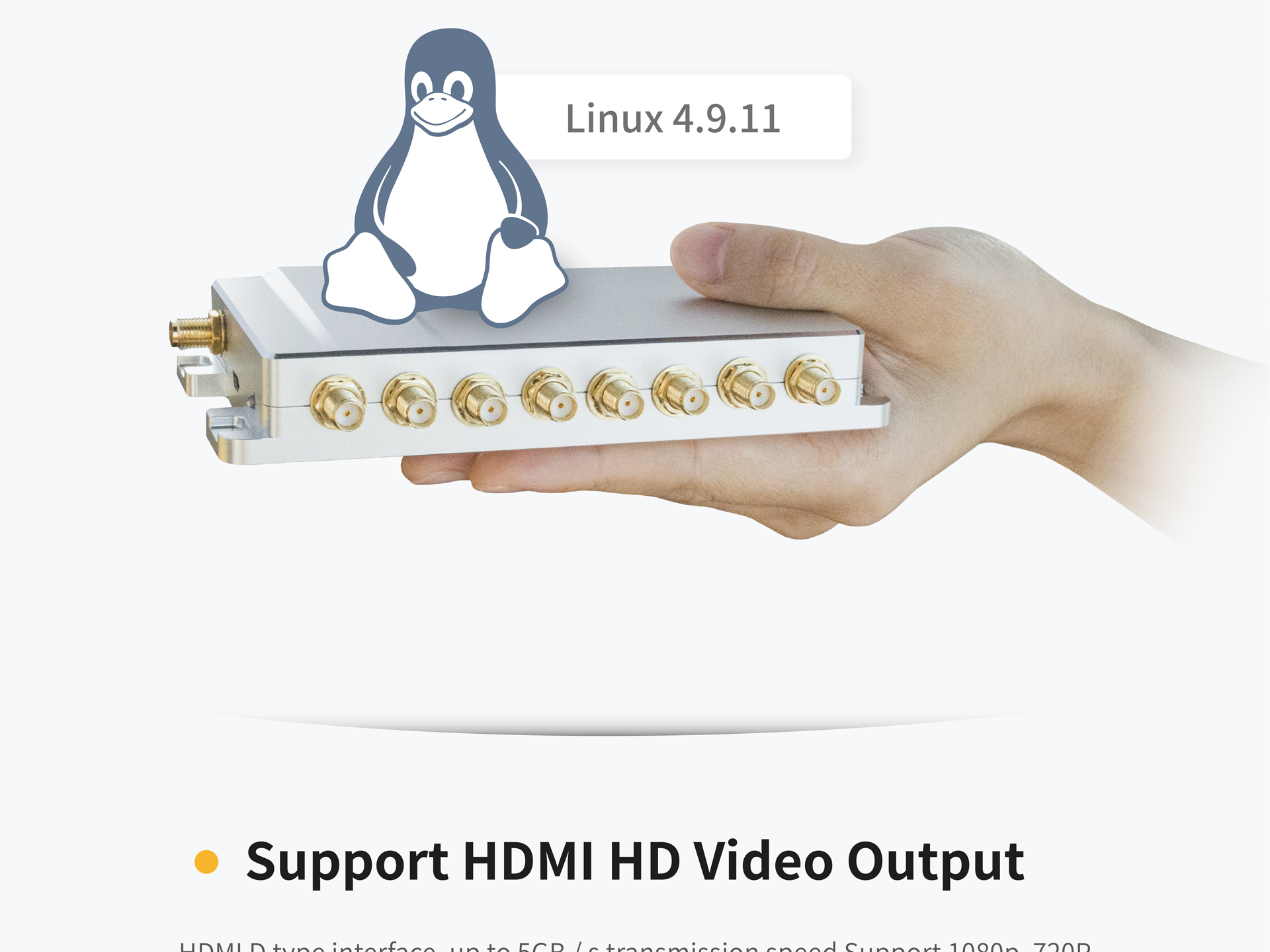

Linux 4.9.11

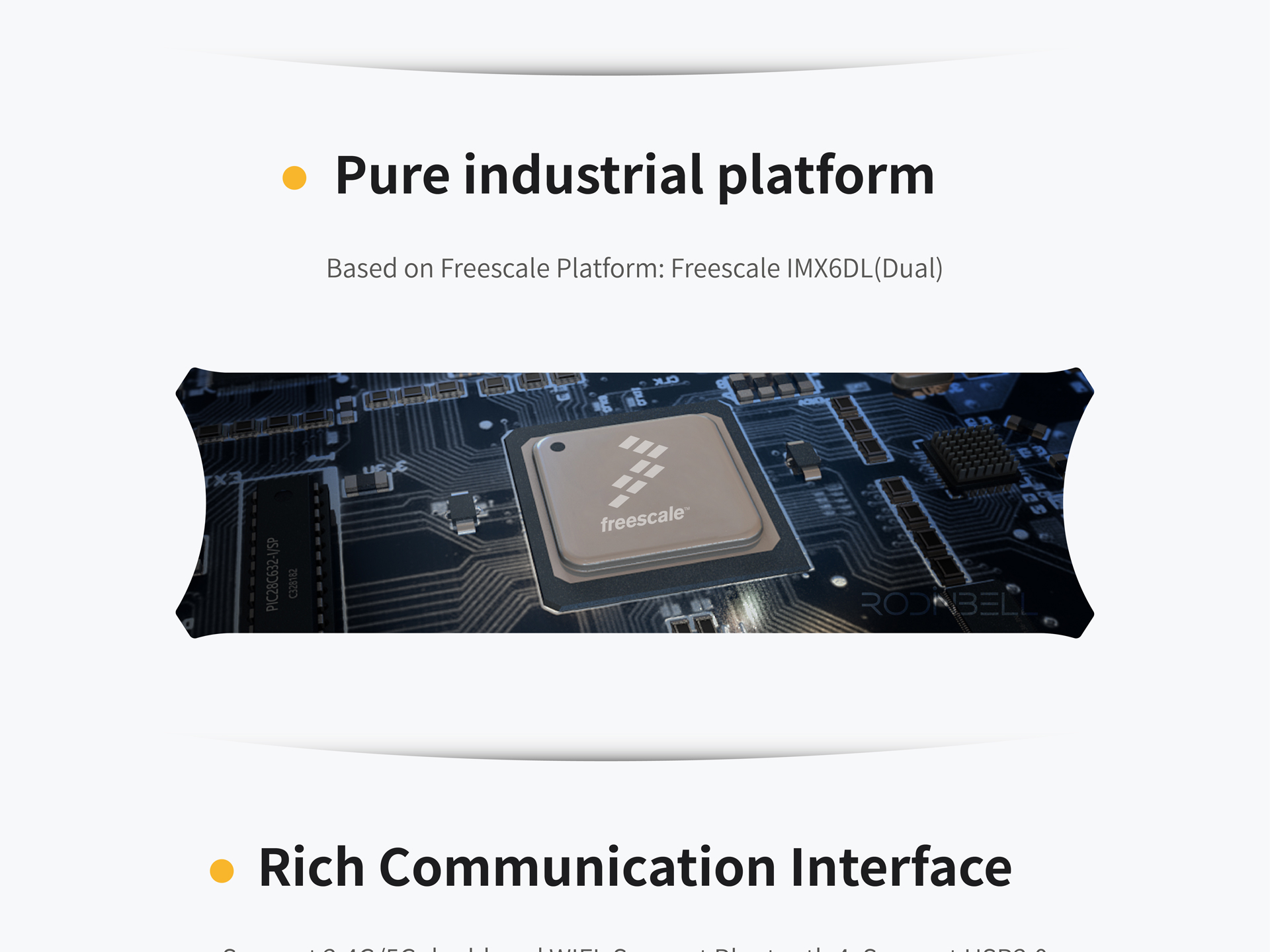

Freescale IMX6DL(Dual)

Vivante GC2000/Vivante GC355/Vivante GC320

1G+8G

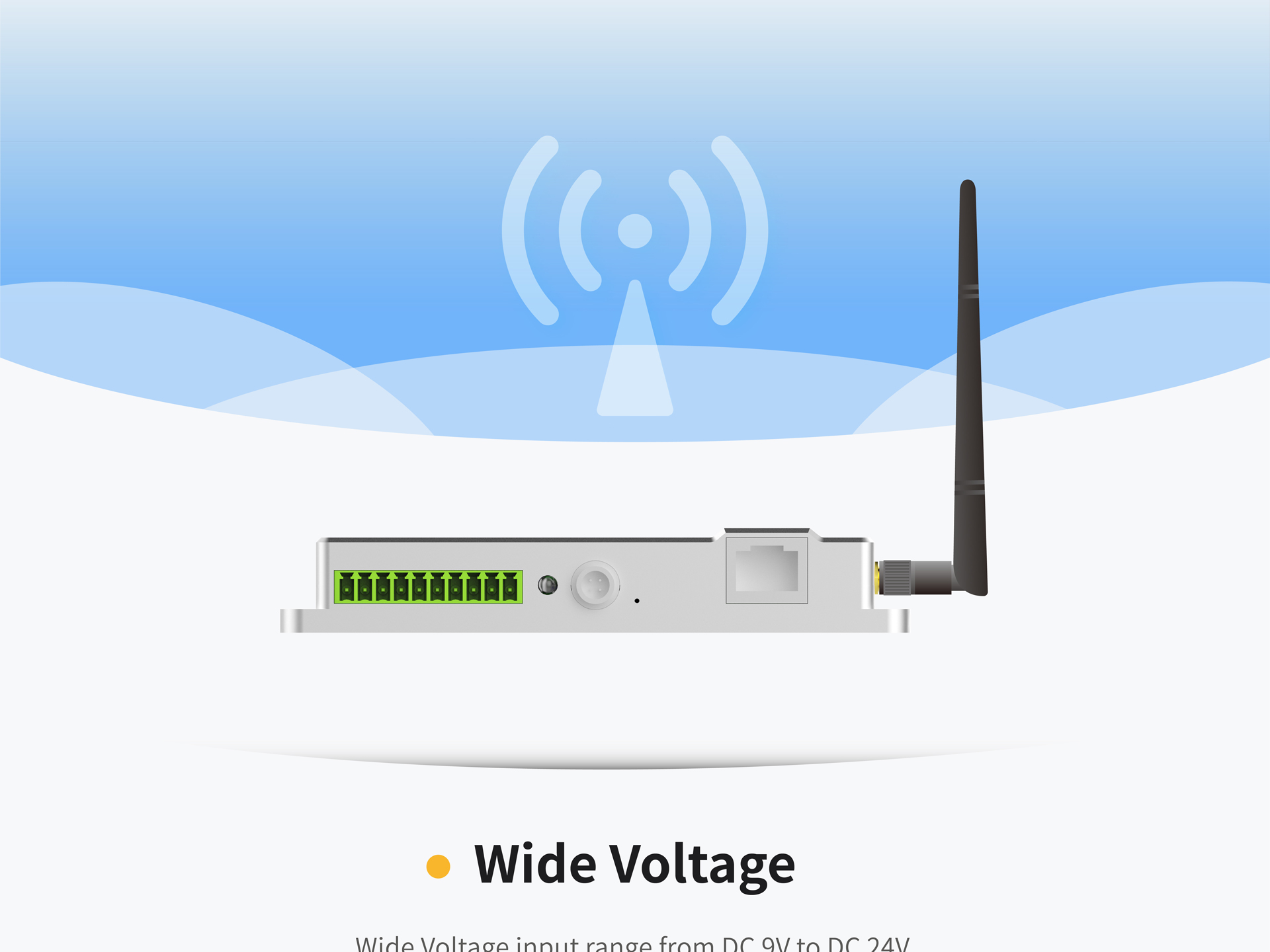

DC 9V~24

1.5A+/-5%@DC 12V Input

Maximum 25W, support IEEE 802.3 protocol

1 HDMI (Type-D) interface, support 2K/

60fps output

Supported

Supported

Wireless Communications

USB

Ethernet

WIFI

Bluetooth

GPIO

1 Micro USB2.0 OTG Interface

10/100/450Mbps adaptive ethernet

Support 2.4G/5G WIFI

Bluetooth 4.0

4 Inputs,4 Outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling

Data Collections

UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Antenna Detector

Supported Regions




Based on Impinj Indy R2000

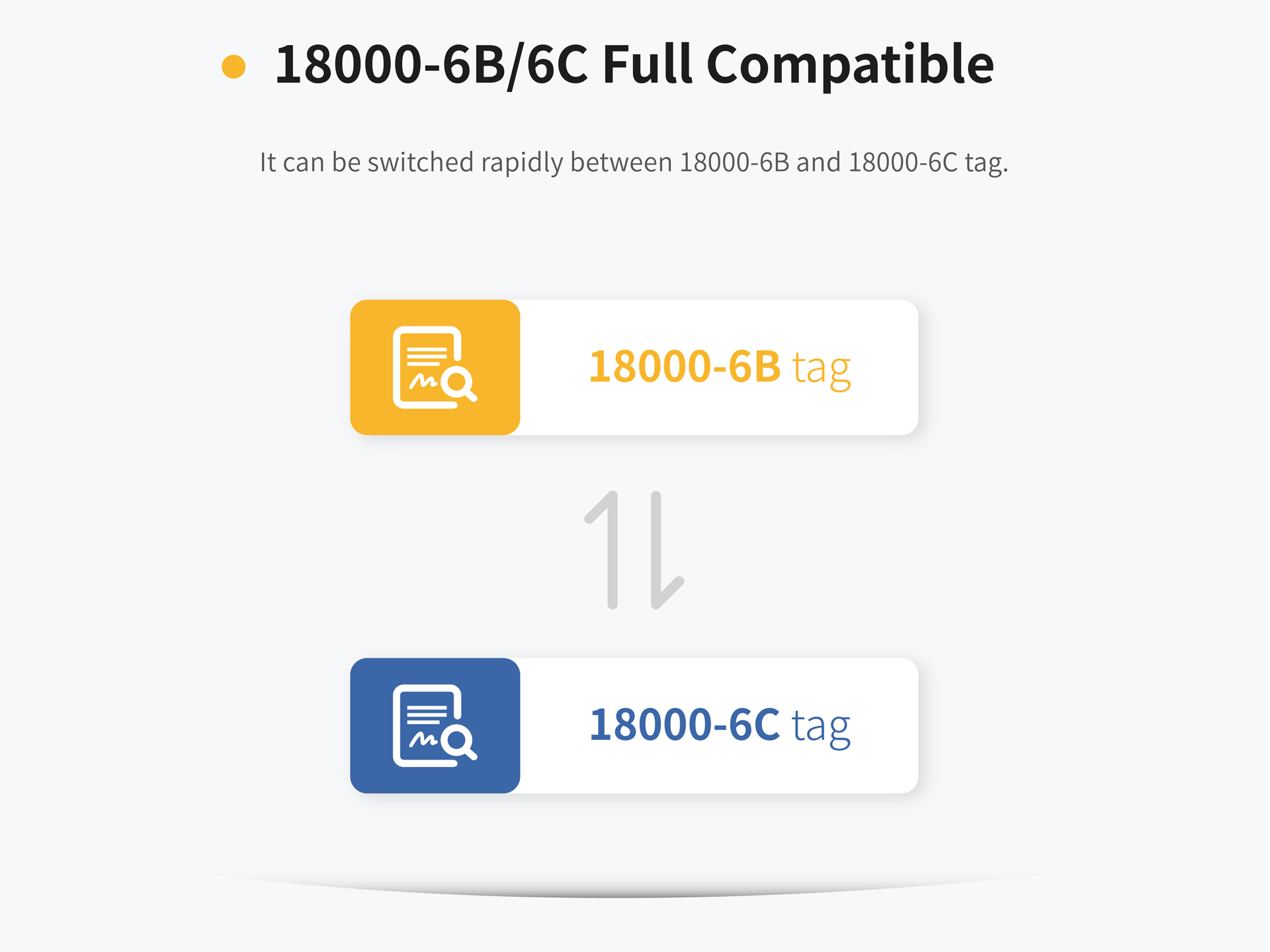

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/ISO 18000-6B

902~928MHz, 865~868MHzOptional

0~31dbm

>500pcs/s

+/- 1dB

+/- 0.2dB

<-85dBm

Supported

Supported

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
