EAB-002
Embedded Computer
AI computing platform built with independent NPU.
Product
  • Environment
  • Electricity
  • Education
  • Financial
  • Vehicle
  • Traffic

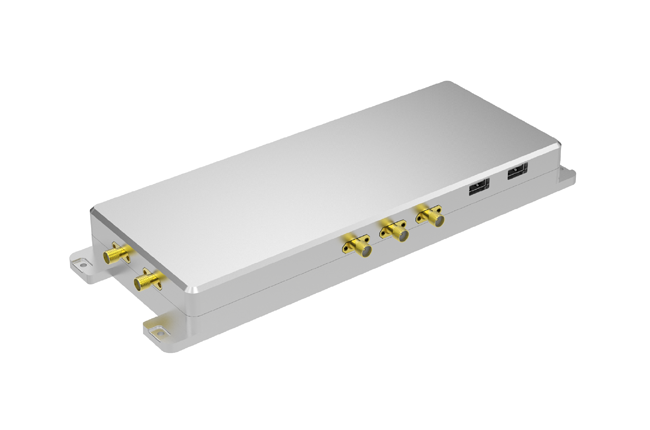

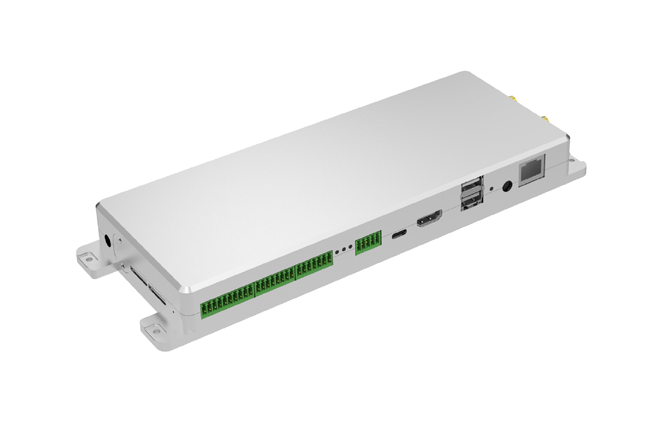

EAB-002 Embedded Computer
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter


Mechanical Parameters

Material

Dimensions

Weight

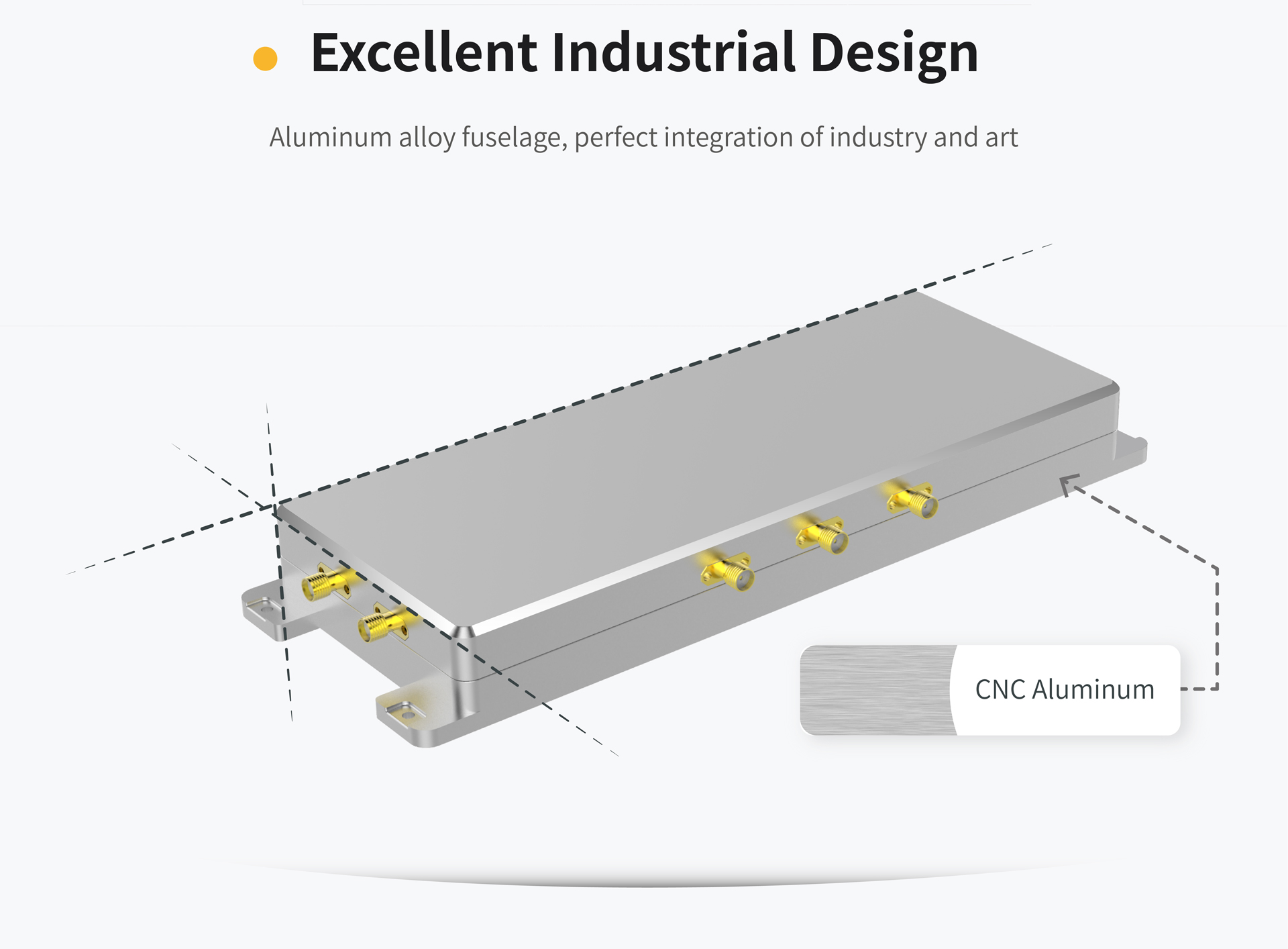

CNC Aluminum

250*94*29mm

590g

Electrical Parameters

Operating System

CPU


GPU


NPU


RAM+ROM

Input Voltage

Recommended power

RFID Antenna

POEOptional

Gyroscope

SD Card

PSAM

HDMI

Audio

Camera Interface

Ambient Temp Monitoring

Online Upgrade

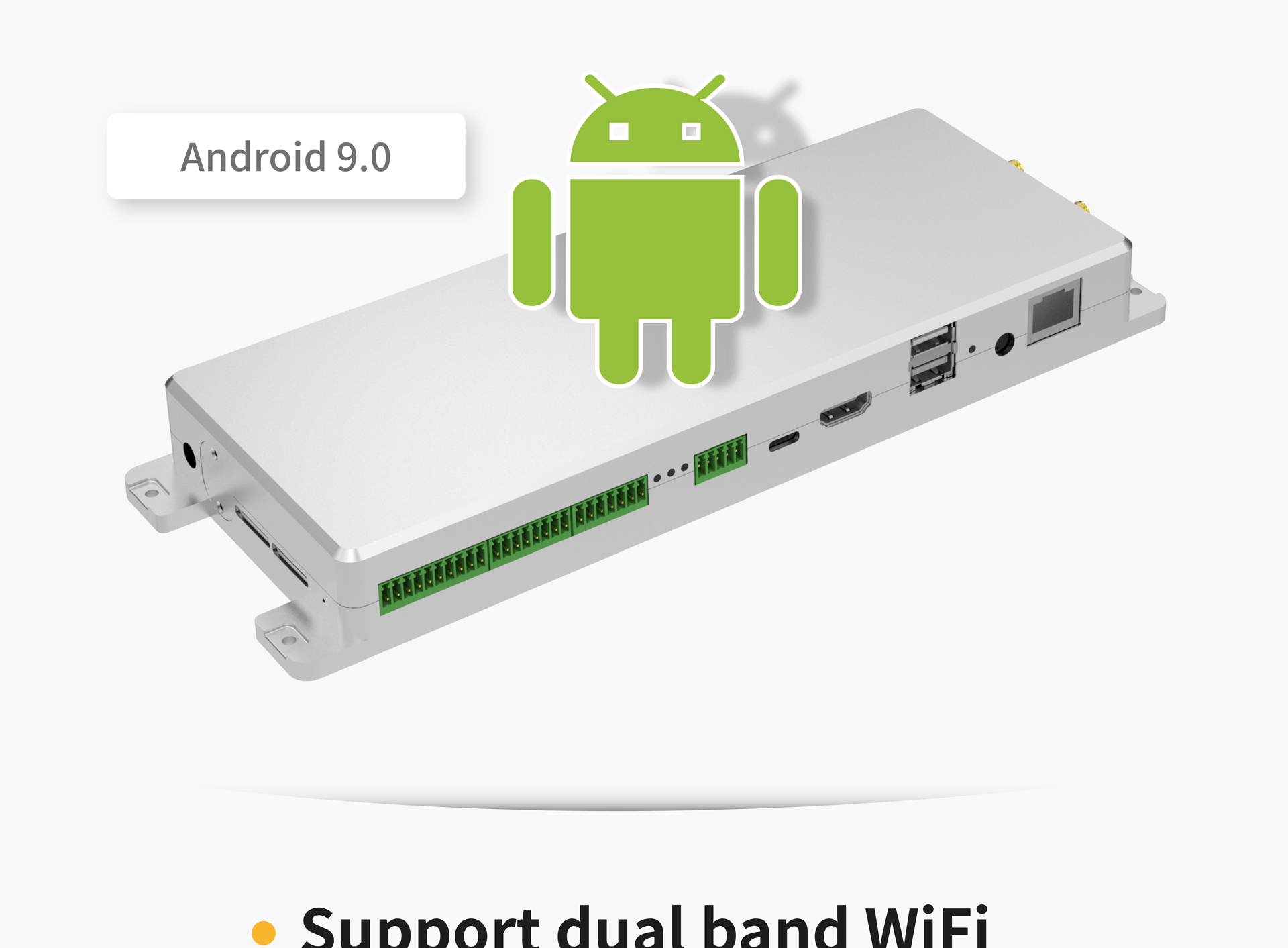

Android 9.0

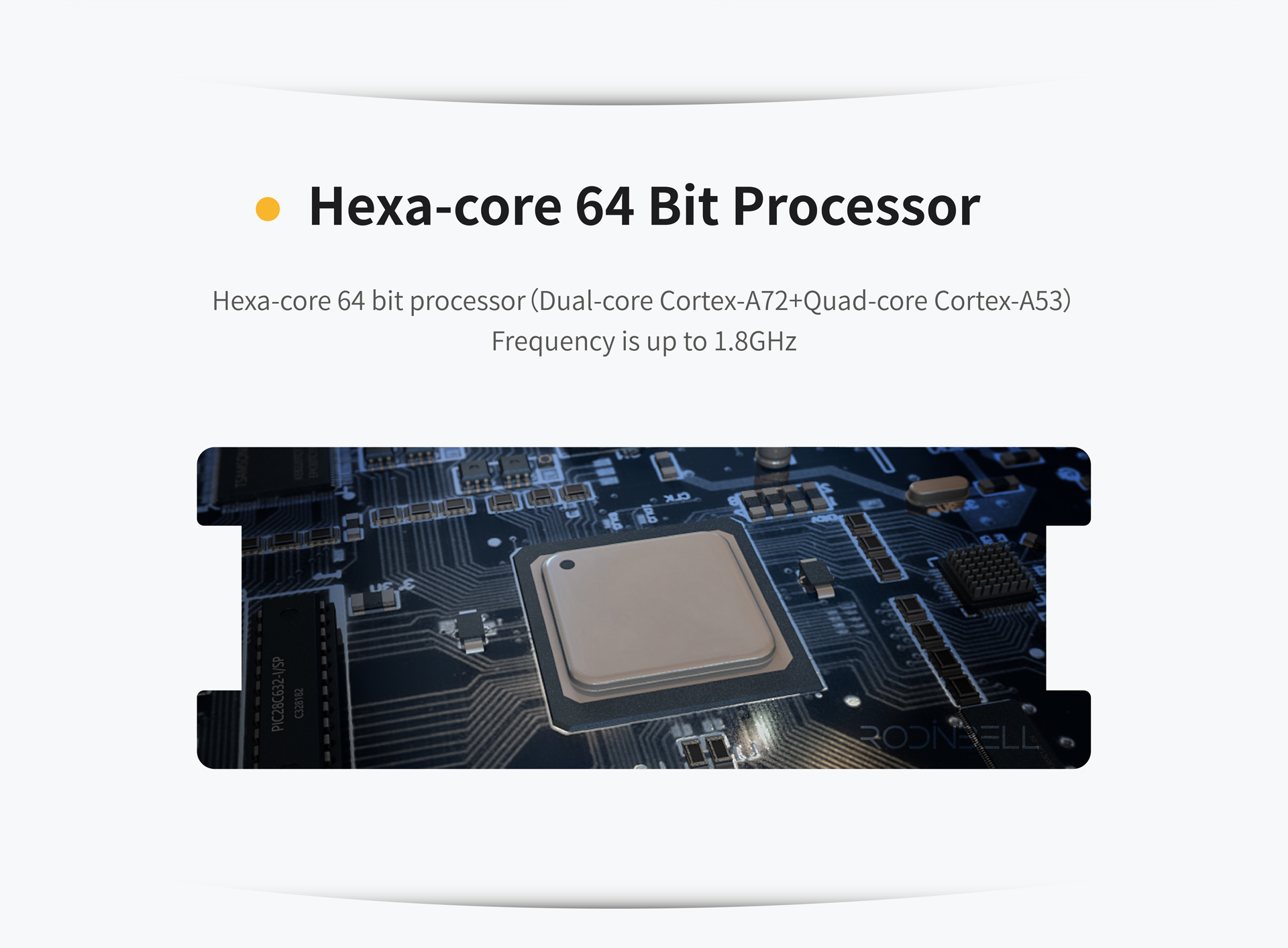

Hexa-core 64 bit processor ( Dual-core Cortex-A72+Quad-core Cortex-A53 )

Frequency is up to 1.8GHz

Mali-T860MP4 GPU

Support OpenGLES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11

1G independent RAM,Computing power up to 3.0TOPs

Supports multiple face recognition algorithms Supports TensorFlow/Caffe Model

2G+32G,4G+64GOptional

DC 12V~24V

>50W

8 SMA female antenna interfaces

Maximum 25W, support IEEE 802.3 protocol

Nine axis (  Acdeleration+Gyroscope+Magnetometer

1 Micro SD3.0 slot

1 Micro PSAM slot

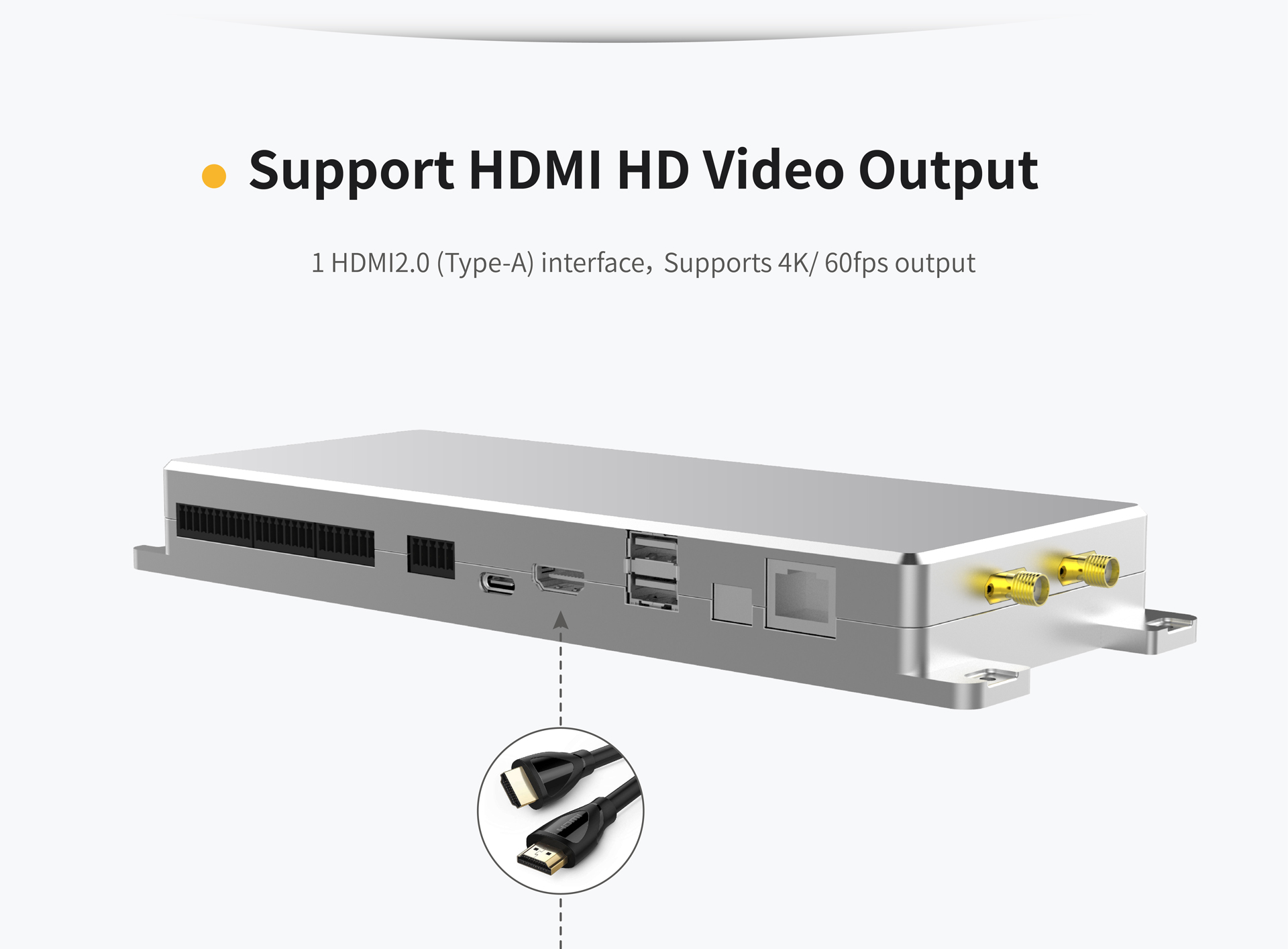

1 HDMI (Type-A) interface,支Support 2K/ 60fps output

1 Stereo audio output jack

Support 2 channels 4K HD camera online/span>

Supported

Supported

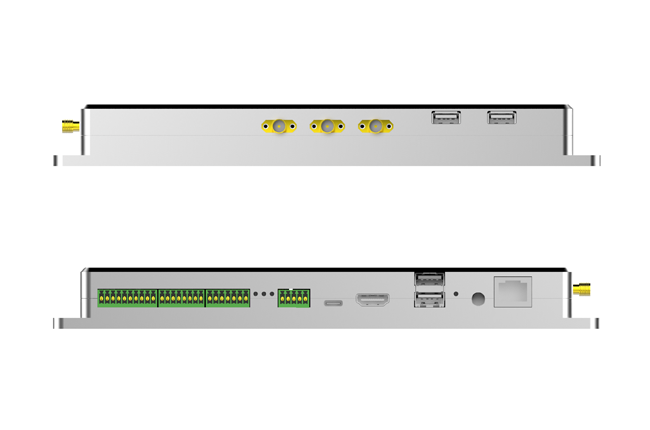

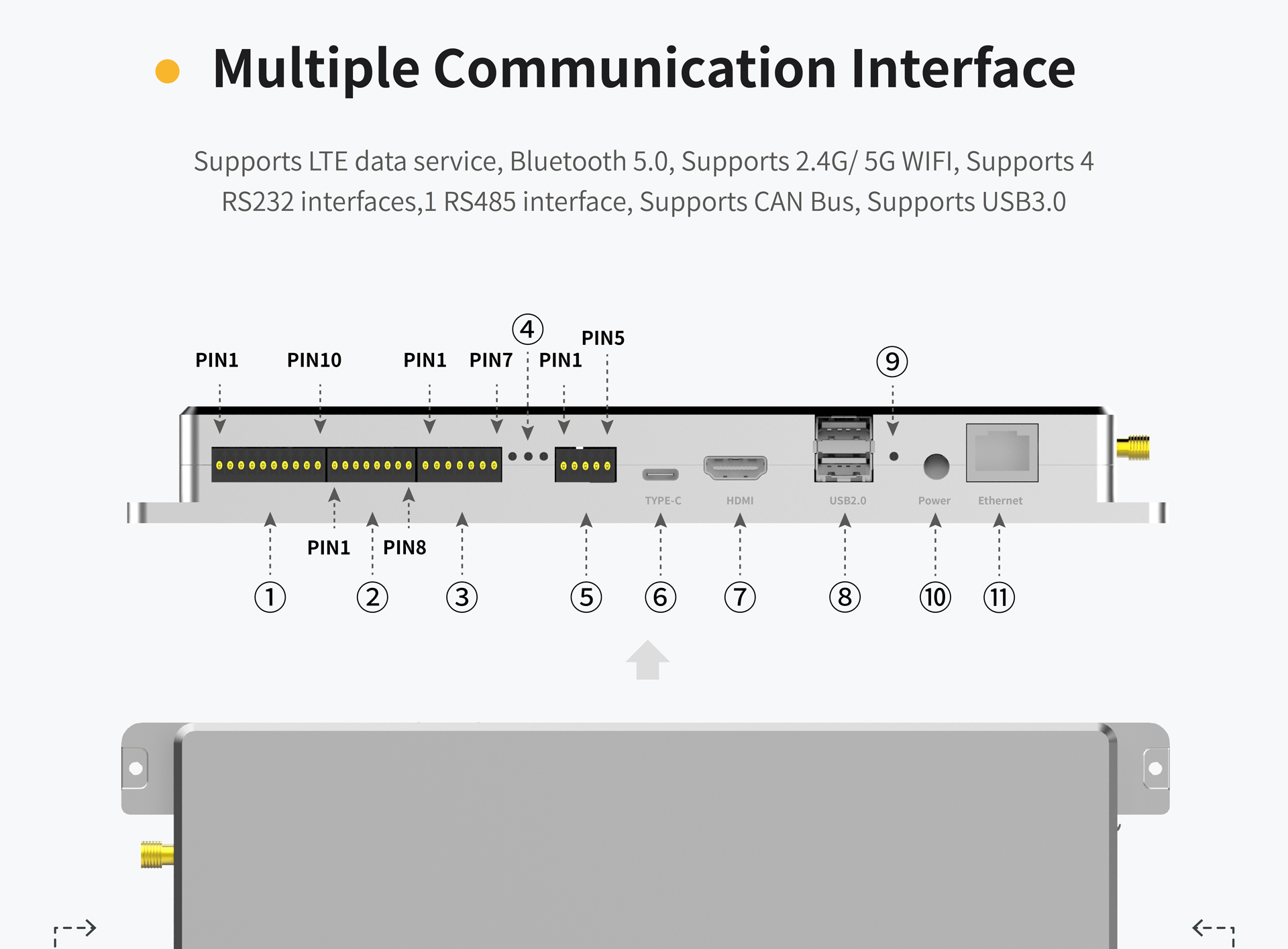

Communication Interfaces

USB



Ethernet

Serial Interface

Industrial Bus

WIFI

Bluetooth

LTEOptional

GPIO

2 USB2.0 Host(Type-A)interfaces

2 USB3.0 Host(Type-A)interfaces

1 USB3.0 OTG(Type-C)interface

10/100/1000Mbps ethernet

4 RS232 interfaces, 1 RS485 interface

CANBus

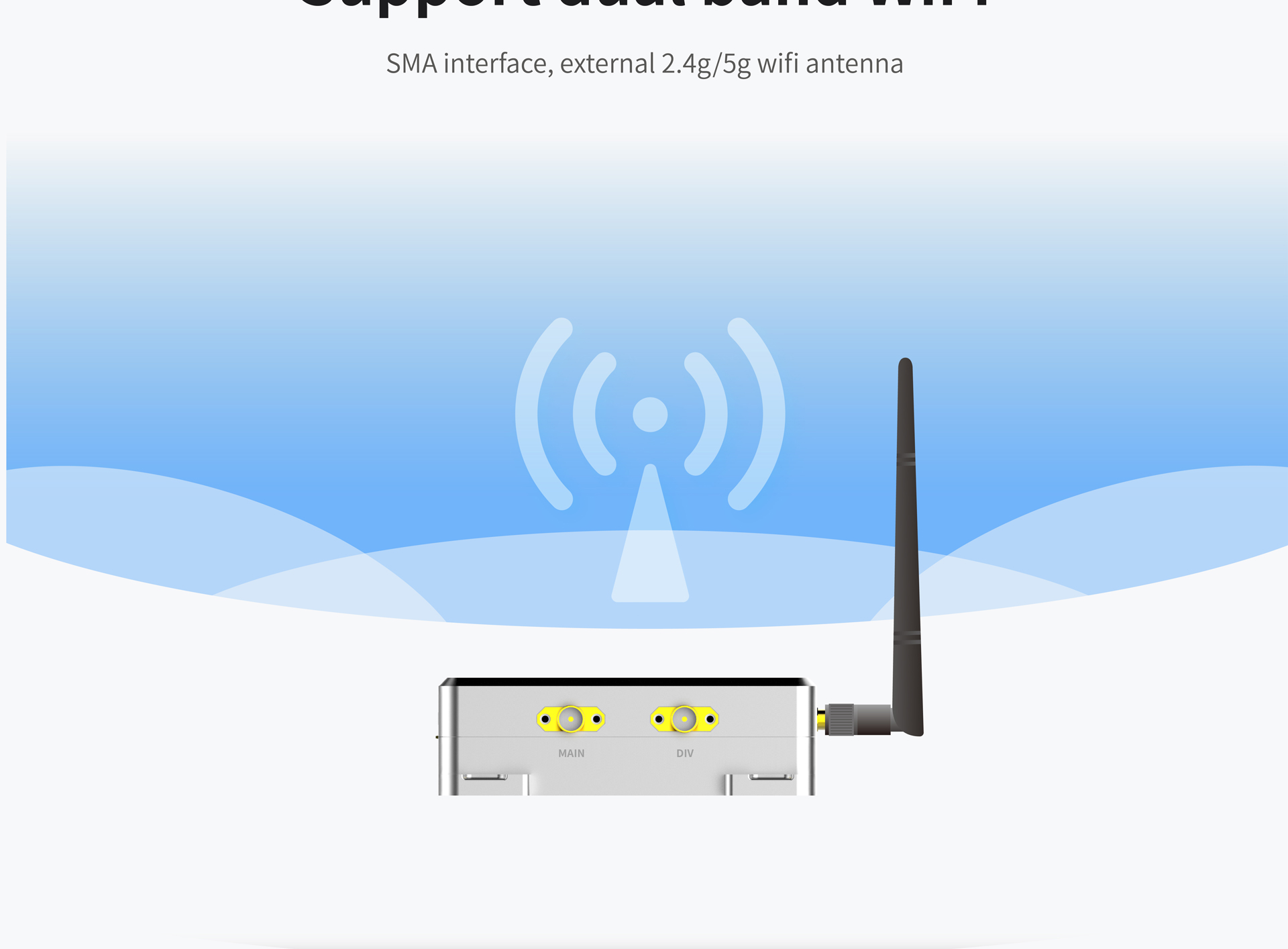

Support 2.4G/5G WIFI

Bluetooth 5.0

Support LTE data service

4 Inputs,4 Outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+85℃

-40℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling
