M-550
UHF RFID-ANT Integrated Module
Ultra low power consumption, compact and mini-sized.
Product
  • Data Terminal
  • Fixed Reader
  • Clothing
  • Library
  • Livestock
  • Retail

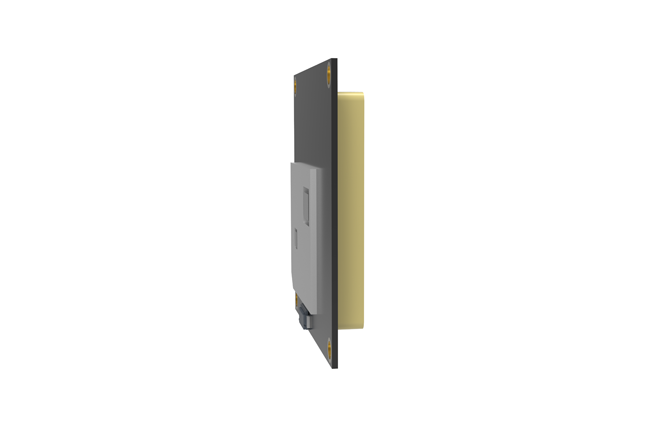

M-550 UHF RFID-ANT Integrated Module
DetailsParameterSelectionConsulting
  • Tel:0755-28225530
  • Email:info@rodinbell.com
  • Fax:+86 755 89373021
  • Post:518129
  • Address: 905#, Tower B, Xinghe WORLD, Wuhe Avenue, Longgang District, Shenzhen City, PRC
Become a partner or an agent?Enter


Mechanical Parameters

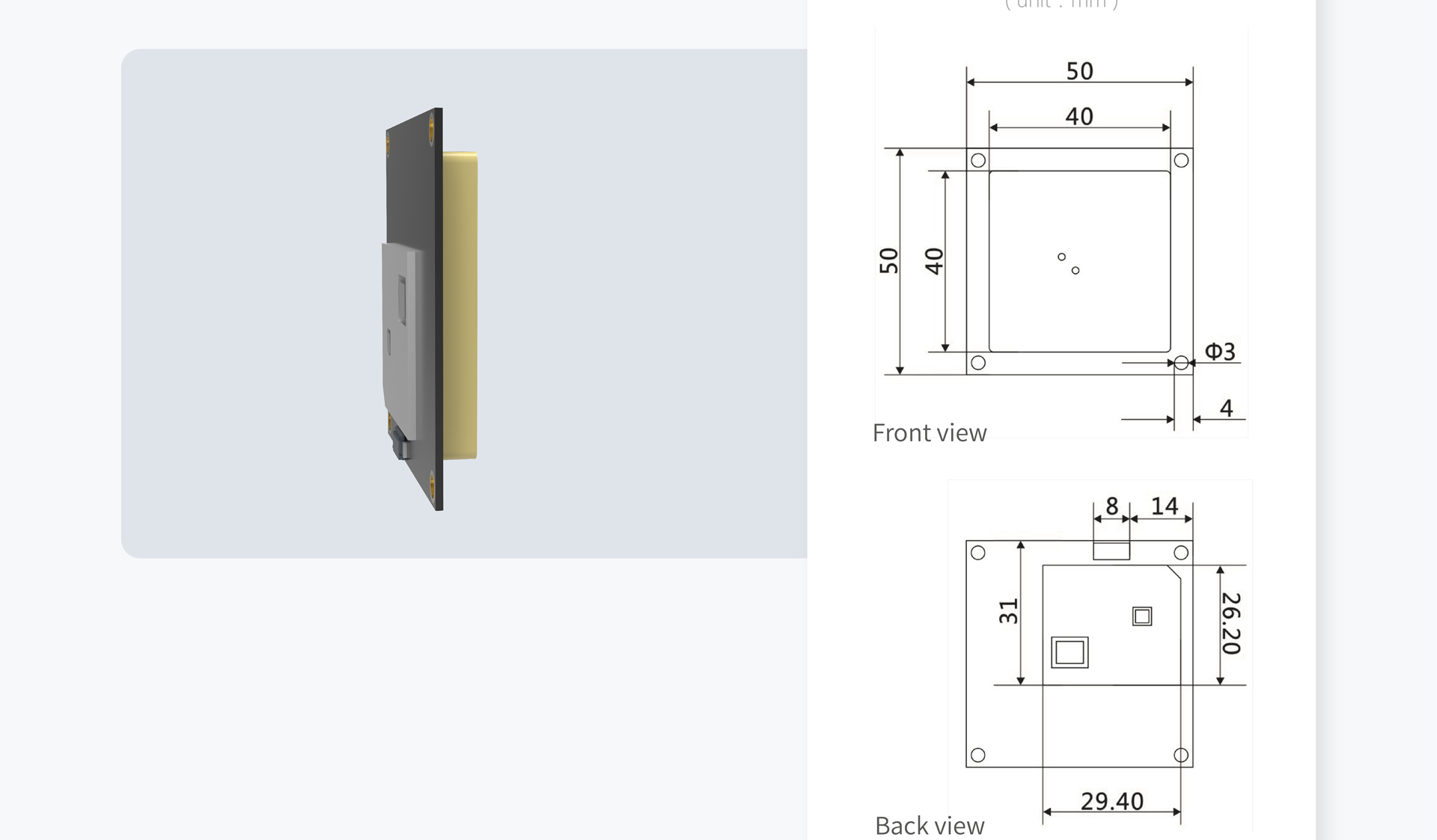

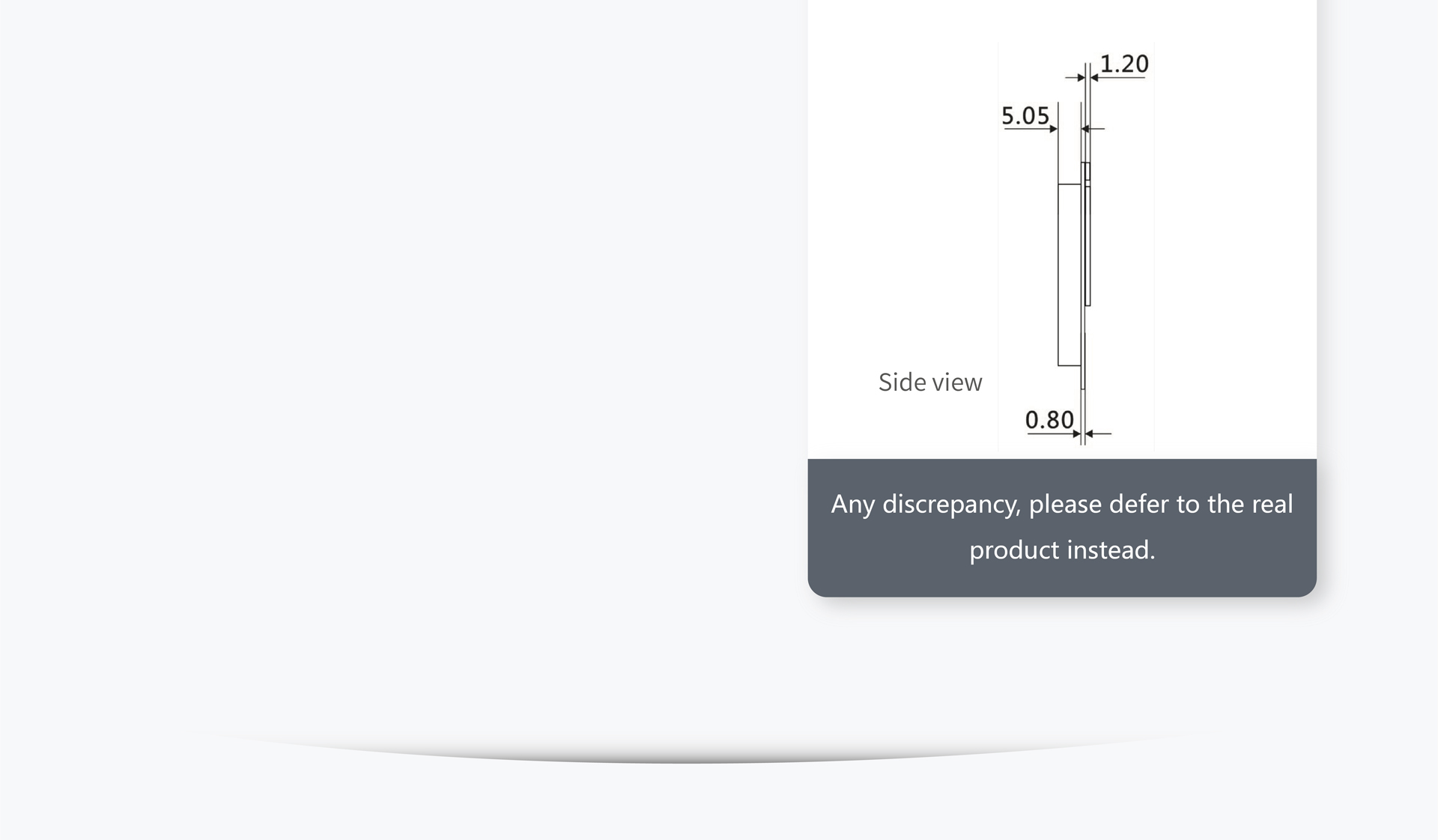

Dimensions

50*50*7.9mm

Electrical Parameters

Input Voltage

Operating Current


Standby Mode Current

Baud Rate

DC 3.5V~5V

150mA @ 5V (26 dBm Output,25°C)

110mA @ 5V (18 dBm Output,25°C)

<80mA

115200 bps( default and recommended),38400 bps

Communication Interface

Serial Port

GPIO

Uart 3.3V

1 Input,2 Outputs

Application Environment

Operating Temp

Storage Temp

Humidity

Protection Grade

Heat Dissipation

-20℃~+70℃

-20℃~+85℃

5%RH~95%RH(non-condensing)

IP53

Air cooling

UHF

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

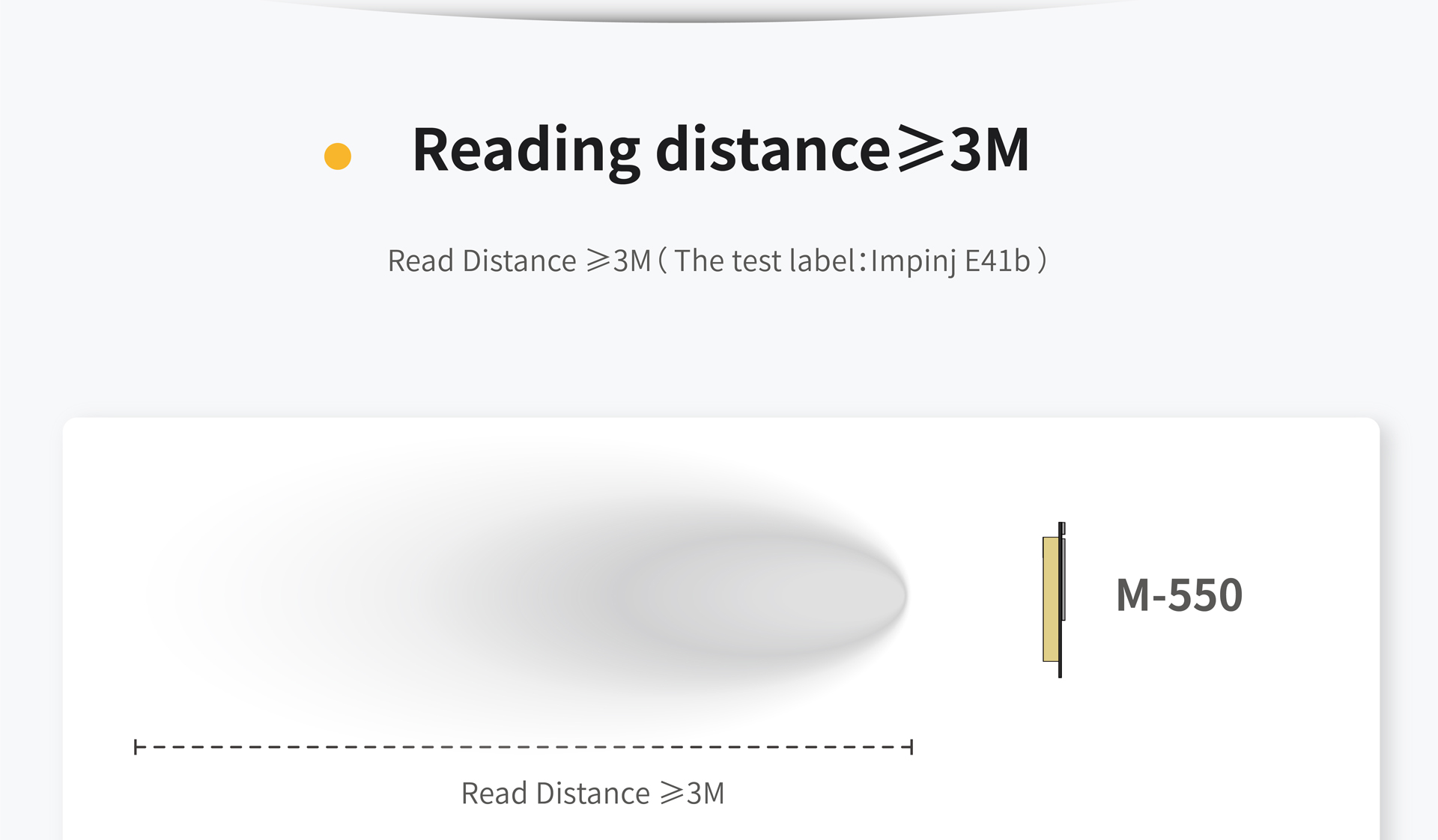

Read Distance


Tag Buffer Mode

Output Power Precision

Output Power Flatness

Sensitivity

Tag RSSI

Supported Regions



EPC Global UHF Class 1 Gen 2/ ISO 18000-6C

902~928MHz, 865~868MHzOptional

18~26dbm

>50pcs/s

D-100 2dbi ceramic antenna

D-101 0dbi ceramic antenna

D-100: 80~300cm

D-101: 10~50cm

200 pcs @ 96 bit EPC

+/- 1dB

+/- 0.2dB

<-70dBm

Support

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208
