Operating System

CPU

GPU

RAM+ROM

LCD

Touch Screen

Hotswapping Battery

Buttons

Power

Card Slots

USB Interface

Audio

Vibration

Charge Indicator

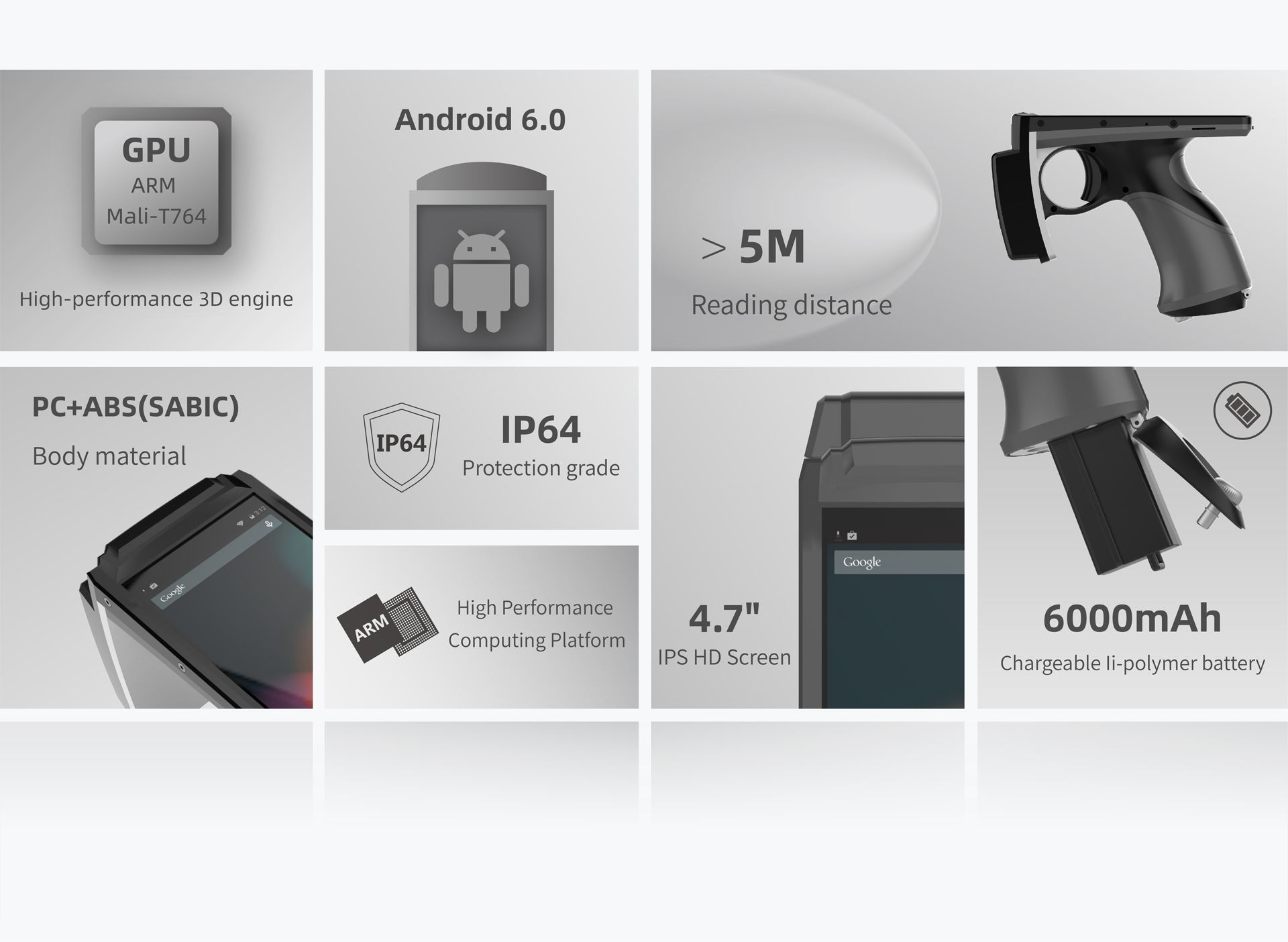

Android 6.0

Quad-core Cortex-A17/ 1.8GHz

ARM Mali-T764/ High performance 3D engine

2G+16G，4G+64GOptional

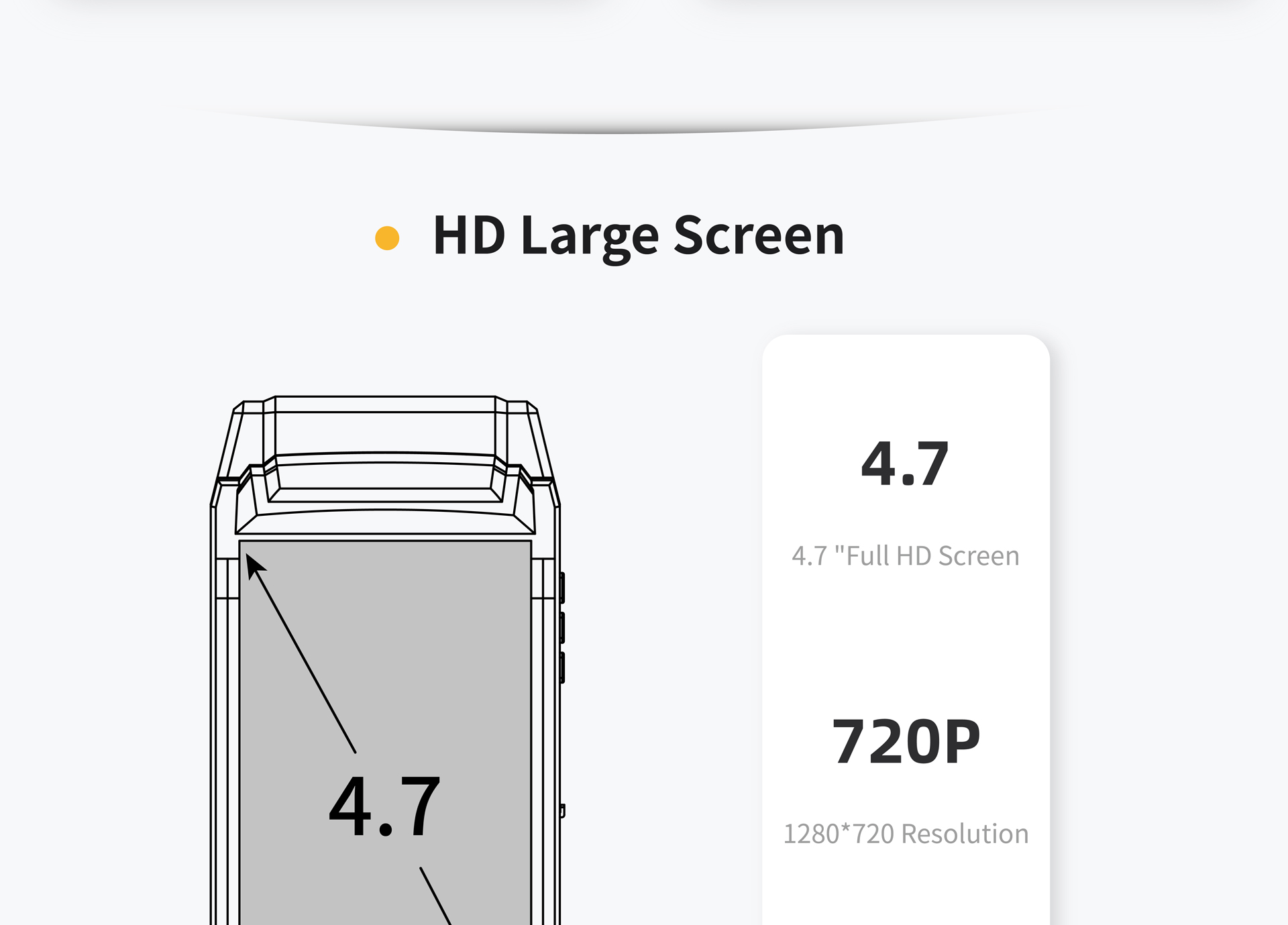

4.7 inches/ 1280*720 / IPS / 180°view angle

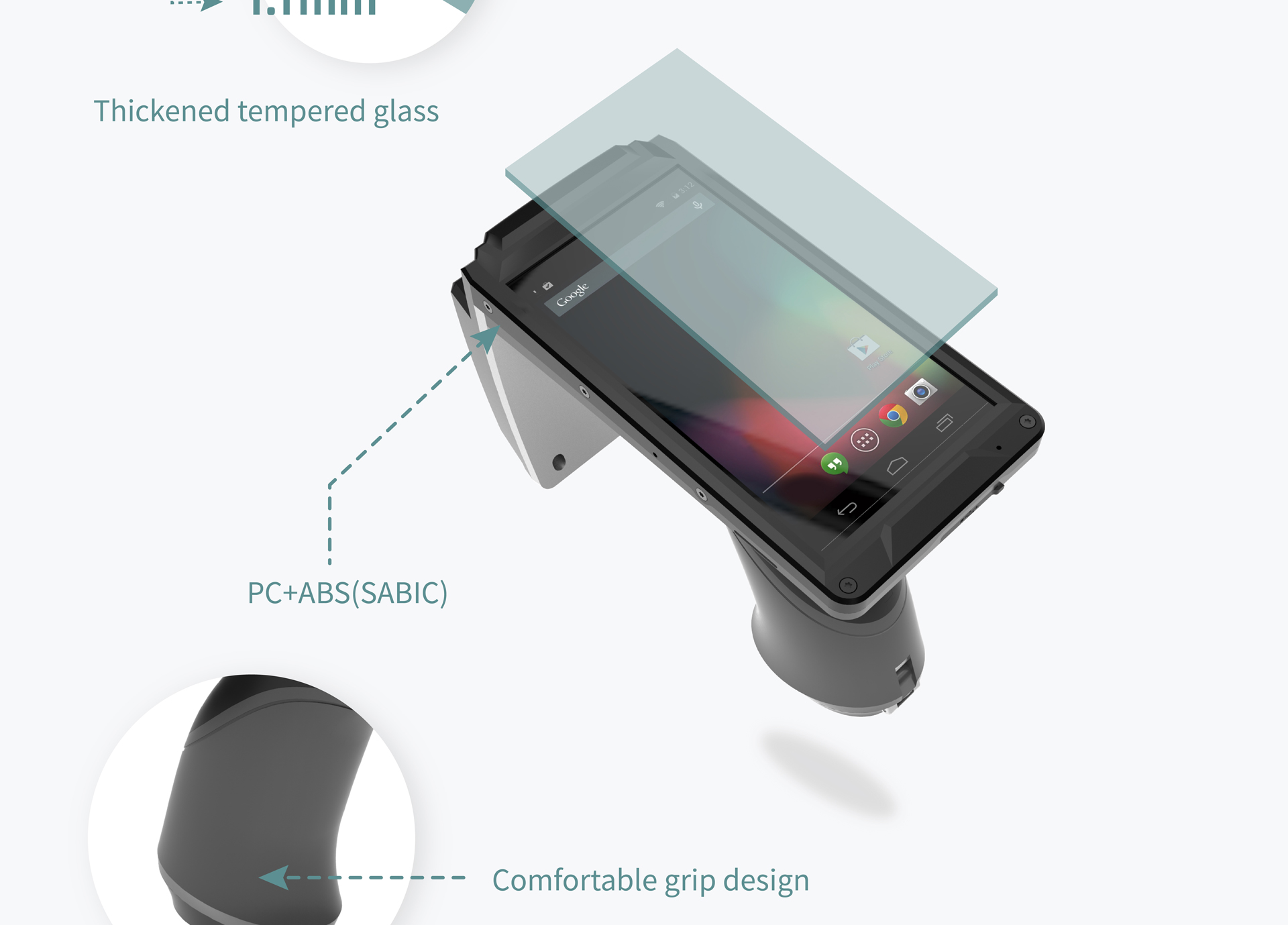

1.1mm thickness tempered glass/5- dot touch/operable with gloves

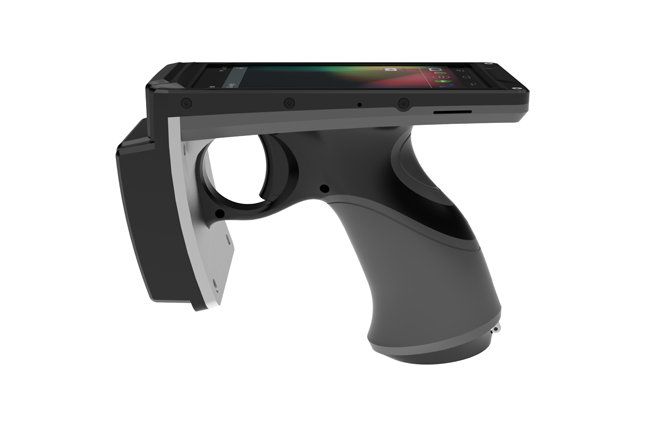

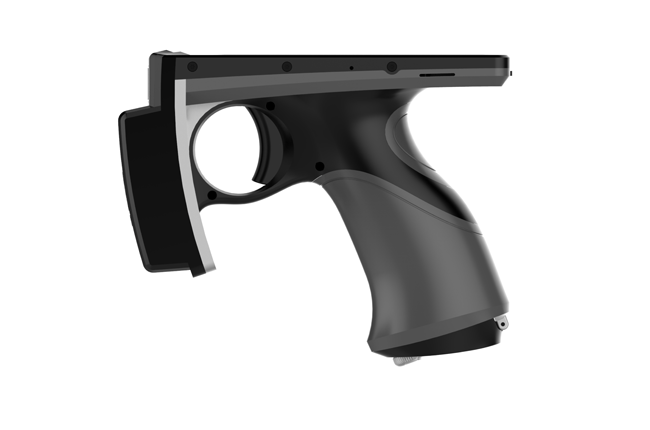

Pistol style hotswapping battery system

Power / Volume:3 ALPS buttons/ Operating force 2.5N /Operating life 1 million cycles

Scan Trigger:OMRON button/Operating force 1.27N/ Operating life 10 million cycles

6000mAh chargeable Ii-polymer battery

Micro SIM card slot*1 / TF card slot*1

Micro USB/MOLEX connector /Operating life 10,000 cycles

Supported

10mm /Button style

Bicolor LED

WIFI

Bluetooth 4.0

4G

IEEE802.11b / g / n

Bluetooth 4.0

SupportedOptional

Operating Temp

Storage Temp

Humidity

Protection Grade

Safety Drop Height

-20℃~+60℃

-30℃~+70℃

5%RH~95%RH(non -condensing)

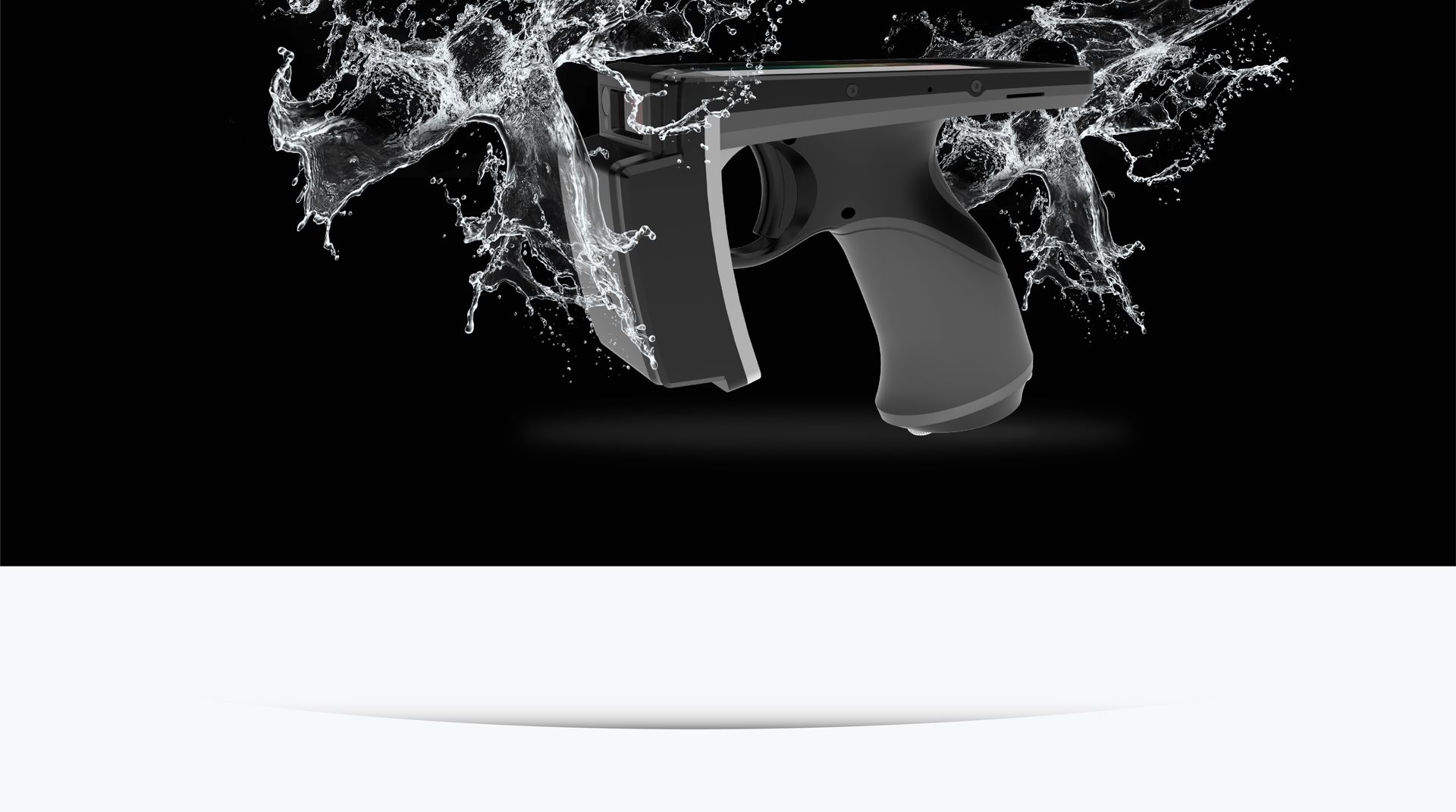

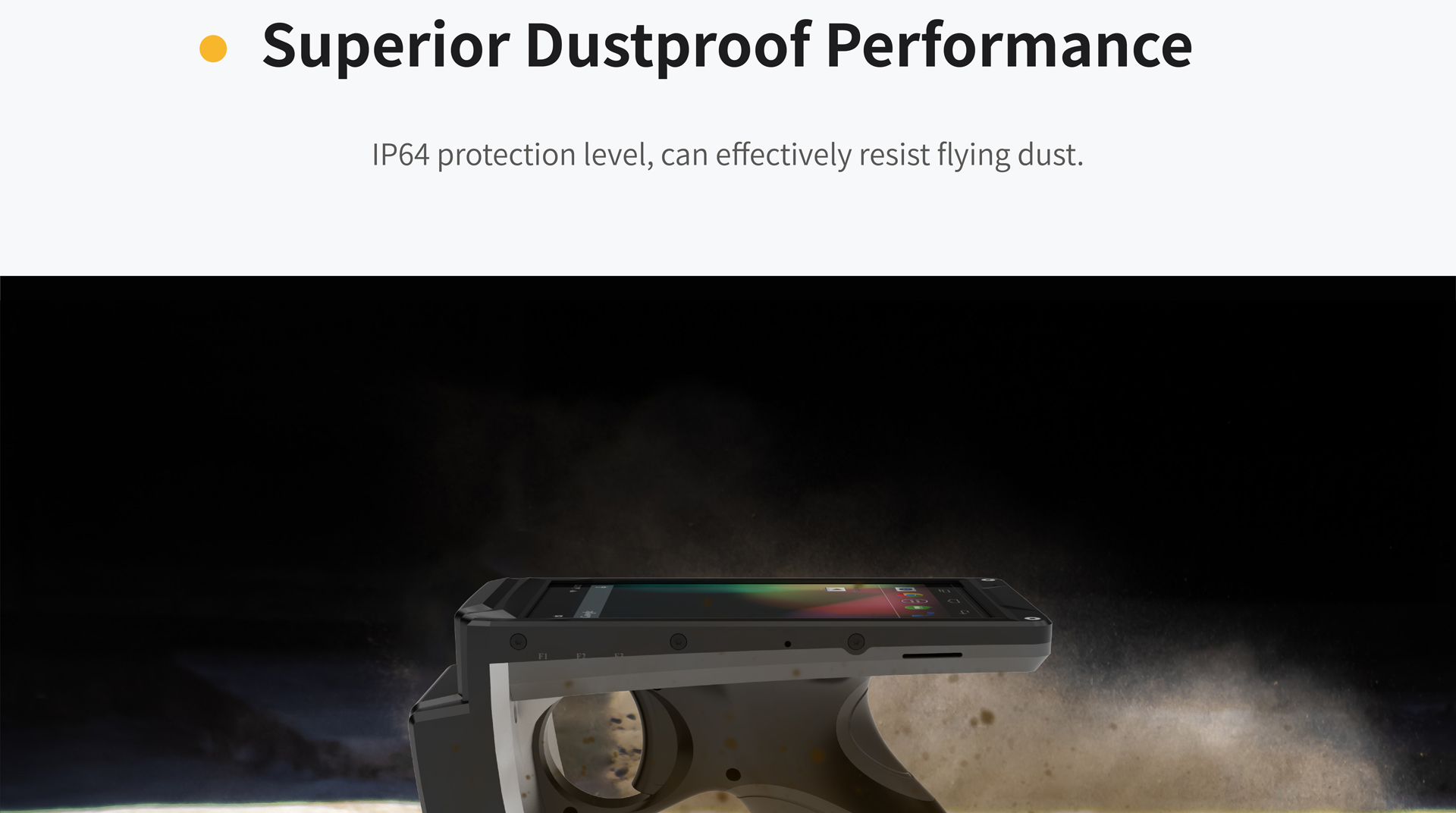

IP64

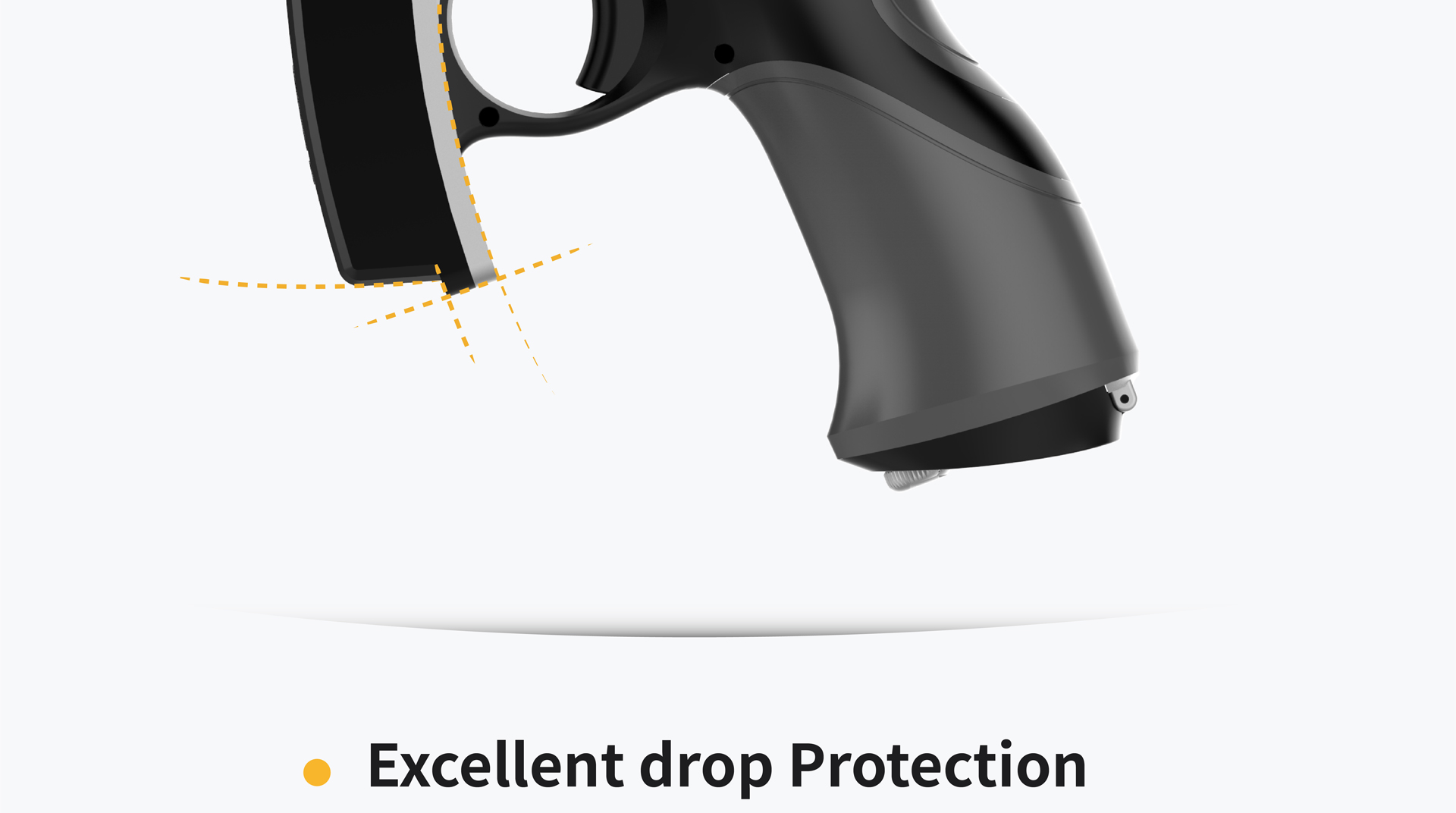

1.2 m / 3.94ft

1D Barcode Optional

Engine

Support

2D Barcode Optional

Engine

Support

UHF RFID

Engine

Protocol

Frequency

Output Power

Peak Inventory Speed

UHF Antenna

Read Distance

Supported Regions

Motorola EM1350

UPC/EA Symbol SE955N/Code128/Code39/

Code93/Code11/

Interleaved 2 of 5/Discrete 2 of 5/

Chinese 2 of 5/Codabar/

MSI/RSS etc.

Zebra SE4750, NLS EM3396

Data Matrix/QR Code/Aztec Code/PDF417/US Planet/

UK Postal etc.

Rodinbell M-2600/  based on Impinj Indy R2000

EPC Global UHF Class 1 Gen 2/ ISO 18000-6C/6B

902~928MHz, 865~868MHzOptional

0~28dbm

＞200pcs/s

3dBi air dielectric antenna

＞5m( The test label: lmpinj E41b )

China, Korea, Malaysia, Japan

US, Canada and other regions following U.S. FCC

Europe and other regions following ETSI EN 302 208

CameraOptional

13 megapixels/ automatic focus/ flashlight

GPS+GLONASS

Battery,Charger，USB data cable，Hanging Lace

Desktop charger(charge two batteries)Optional
